Highlights:
  • Form Factor: Tower
  • Processor Supported: 1x Intel Xeon Scalable family
  • Drive Bays: 2x 3.5" Internal, 2x 5.25" External
  • Supports up to 2x Double-Wide cards
Contact sales for pricing

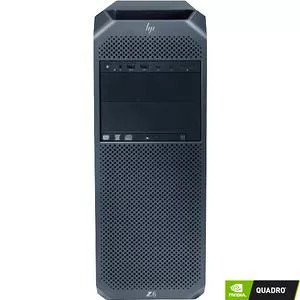

The Valence VWH-161264430-NQR is a tower supporting 1x Intel Xeon Scalable family processor, a maximum of 384 GB DDR4 memory, and up to 2x NVIDIA Quadro RTX GPUs.

NVIDIA Quadro RTX GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
Quadro RTX 800048 GB GDDR6672460857616.30.51295Specs
Quadro RTX 8000 (Passive)48 GB GDDR6624460857614.90.47250Specs
Quadro RTX 600024 GB GDDR6624460857616.30.51295Specs
Quadro RTX 6000 (Passive)24 GB GDDR6624460857614.90.47250Specs
Quadro RTX 500016 GB GDDR6870307238411.20.35200Specs
Quadro RTX 40008 GB GDDR641623042887.10.22160Specs

* Passive GPUs only for select systems that support passive cooling.

Processor & Chipset
Number of Processors Supported
1
Processor Type
Xeon
Processor Socket
LGA 3647
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
N/A
Chipset Manufacturer
Intel
Chipset Model
C622
Memory
Maximum Memory
384 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
6
Controllers
SATA3
  • Via C622 chipset
  • RAID 0, 1, 5, 10
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots
  • 1x PCI-E 3.0 x8 slot
  • 3x PCI-E 3.0 x4 slots
  • 2x PCI-E 3.0 x4 M.2 slots
Drive Bays
Internal
  • 2x 3.5" drive bays
External
  • 2x 5.25" bay
Interfaces/Ports
Number of USB 3.1 Ports
10 (4x front, 6x rear)
Number of SATA Interfaces
6
Number of M.2 Interfaces
2 (2260/2280/22110)
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Audio
  • 1x Headset (front)
  • 1x Line in (rear)
  • 1x Line out (rear)
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
1000 W
Certification
80 Plus
Physical Characteristics
Color
Black
Form Factor
Tower
Height
17.5"
Width
6.65"
Depth
18.3"
