Highlights:
  • Form Factor: Mini-ITX
  • Processor Supported: 1x Intel Atom N2800
  • Drive Bays: 1x 2.5" Internal
  • 1x VGA, 1x HDMI, 1x DisplayPort
Contact sales for pricing

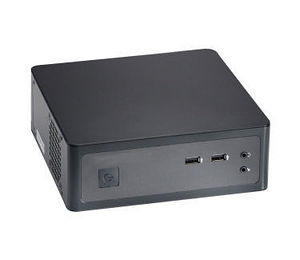

The Valence VWF-264604 is a Mini-ITX desktop supporting 1x Intel Atom N2800 processor and a maximum of 4 GB DDR3 memory. The Valence VWF-264604 is ideal for applications such as Digital Signage, Gaming, Kiosk, ATM and POS machines.

Features:

    • Supports Intel Atom N2800 1.86GHz 1MB
    • Supports 2 x 204Pin Memory Slots (Max 4GB)
    • Supports 2 x SATA 300 HDD
    • 60W DC Power Adapter
Processor & Chipset
Number of Processors Supported
1
Processor Socket
FCBGA559
Processor Type
  • Atom
Processor Model
  • N2800
Thermal Design Power (TDP)
N/A
Chipset Manufacturer
Intel
Chipset Model
NM10 Express
Memory
Maximum Memory
4 GB
Memory Technology
DDR3 SDRAM
Memory Standard
DDR3-1066/PC3-8500
Number of Total Memory Slots
2
Controllers
SATA2
  • Via NM10 Express chipset
Display & Graphics
Graphics Controller Manufacturer
Intel
Graphics Controller Model
GMA 3650
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 1x Mini-PCI-E
Drive Bays
Internal
  • 1x 2.5" drive bay
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
4 (2x front, 2x rear)
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
2
LAN
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
Onboard Video
  • 1x VGA
  • 1x HDMI
  • 1x DisplayPort
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
60 W DC
Physical Characteristics
Color
Black
Form Factor
Mini-ITX
Height
2.68"
Width
7.68"
Depth
7.68"
