Highlights:
  • Form Factor: 4U Rackmountable / Tower
  • Processor: 1x Intel Core X-Series
  • Drive Bays: 8x 3.5" Hot-Swap
  • Supports up to 4x Double-Wide cards
Contact sales for pricing

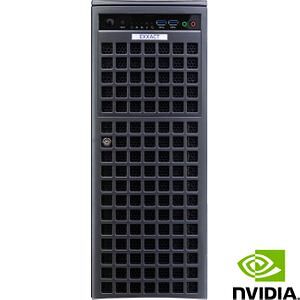

The TensorEX TWS-1642706-NQV is a 4U rack mountable tower supporting 1x Intel Core X-Series processors, a maximum of 256 GB DDR4 memory, and up to 4x NVIDIA Quadro RTX GPUs.

NVIDIA Quadro RTX GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
Quadro RTX 800048 GB GDDR6672460857616.30.51295Specs
Quadro RTX 8000 (Passive)48 GB GDDR6624460857614.90.47250Specs
Quadro RTX 600024 GB GDDR6624460857616.30.51295Specs
Quadro RTX 6000 (Passive)24 GB GDDR6624460857614.90.47250Specs
Quadro RTX 500016 GB GDDR6870307238411.20.35200Specs
Quadro RTX 40008 GB GDDR641623042887.10.22160Specs

* Passive GPUs only for select systems that support passive cooling.

Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 2066
Processor Type
  • Core X-Series
Processor Supported
  • Core i5
  • Core i7
  • Core i9
Chipset Manufacturer
Intel
Chipset Model
X299
Memory
Maximum Memory
  • 256 GB (8-Core and above CPU)
  • 64 GB (4-Core CPU)
  • Core i9
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
8
Controllers
Controller Type
SATA3
RAID Supported
Yes, Intel Rapid Storage Technology
RAID Levels
0, 1, 5, 10
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 7x PCI-E 3.0 x16 slots (single x16 or dual x16/x16 or triple x16/x16/x16 or quad x16/x16/x16/x16 or seven x16/x8/x8/x8/x8/x8/x8, supports 4x double-wide cards)
Drive Bays
Hot-Swap
8x 3.5" drive bays
External
3x 5.25" drive bays
Interfaces/Ports
Total Number of USB Ports
15
Number of USB 3.1 Ports
11 (8x rear, 3x header)
Number of USB 2.0 Ports
4 (rear)
Number of SATA Interfaces
8
NVMe
  • 1x M.2 PCIe 3.0 x4 Socket 3, with M key, type 2242/2260/2280/22110 storage device
  • 1x M.2 PCIe 3.0 x4 Socket 3, with M key, type 2242/2260/2280 storage device
  • 2x U.2 connector
LAN
  • 2x RJ45 Gigabit Ethernet LAN Ports
Power Description
Number of Power Supplies
1
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
1200 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7"
Width
18.2"
Depth
26.5"
