Highlights:
- Rack Height: 1U
- Processor Supported: 1x Intel Xeon Scalable family
- Drive Bays: 3x 3.5" Hot-Swap
- Coprocessor: Up to 2x NVIDIA Tesla GPUs

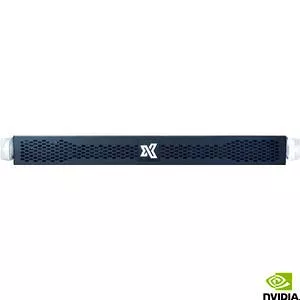

The TensorEX TS1-672510-NTS is a 1U rack mountable server supporting 1x Intel Xeon Scalable family processor, a maximum of 768 GB DDR4 memory, and up to 2x NVIDIA Tesla GPUs.
NVIDIA Tesla GPU Options
| Model | Standard Memory | Memory Bandwidth (GB/s) | CUDA Cores | Tensor Cores | Single Precision (TFLOPS) | Double Precision (TFLOPS) | Power (W) | Explore | |
|---|---|---|---|---|---|---|---|---|---|
 | A100 40 GB PCI-E 4.0 | 40 GB HBM2e | 1555 | 6912 | 432 | 19.5 | 9.7 | 400 | Specs |
 | V100S 32 GB PCI-E 3.0 | 32 GB HBM2 | 1134 | 5120 | 640 | 16.4 | 8.2 | 250 | Specs |
| V100 32 GB PCI-E 3.0 | 32 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
| V100 16 GB PCI-E 3.0 | 16 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
 | P100 16 GB PCI-E 3.0 | 16 GB HBM2 | 732 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
| P100 12 GB PCI-E 3.0 | 12 GB HBM2 | 549 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
 | T4 PCI-E 3.0 | 16 GB GDDR6 | 320 | 2560 | 320 | 8.1 | 0.24 | 75 | Specs |
 | P4 PCI-E 3.0 | 8 GB GDDR5 | 192 | 2560 | - | 5.5 | 0.17 | 75 | Specs |
Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Thermal Design Power (TDP)
205 W
Chipset
C621
Memory
Maximum Memory
768 GB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
6
Controllers
SATA3
- Via C621 chipset
- RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
- 2x PCI-E 3.0 x16 slots (Supports 2x double wide card)
- 1x PCI-E 3.0 x16 slot (Low-profile)
Drive Bays
Hot-swap
3x 3.5" Hot-swap drive bays
M.2
2x M.2 Mini PCIe support 2280
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
6
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port
1x COM Port header
DOM
2x DOM power connectors
Power Description
Number of Power Supplies
1
Maximum Power Supply Wattage
1400 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
28.2"
