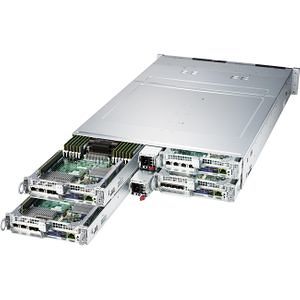

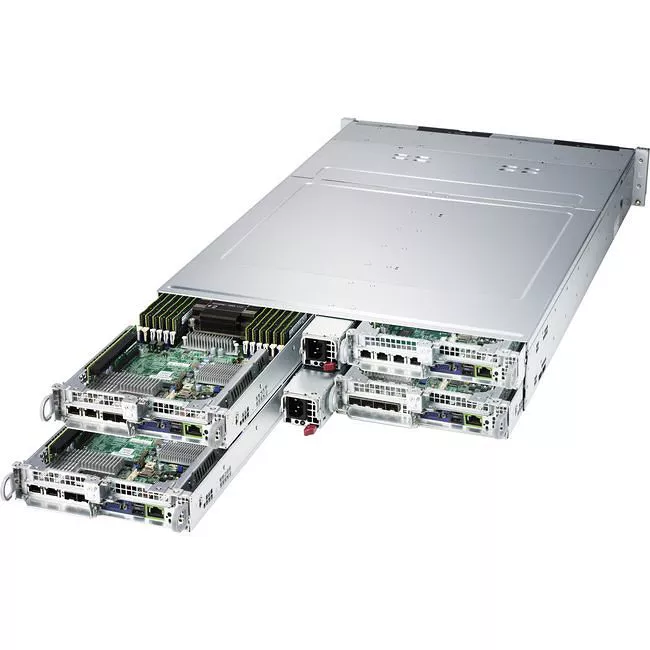

Supermicro SYS-2029BT-HNC1R 2U 4 Node Rack Barebone - Intel C621 Chipset - Dual Socket P LGA-3647


The Supermicro BigTwin™ is the first and only 2U multi-node system supporting the highest performance Intel® Xeon® Scalable processors, DDR4-2666 memory, NVMe storage, onboard SIOM networking and an incredible 30% better thermal capacity. The 5th generation of Supermicro's Twin architecture is fully optimized for today's diverse workloads and architected for further technology breakthroughs.

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

1. Dual socket P (LGA 3647) supports Intel Xeon Scalable Processors, Dual UPI up to 10.4GT/s
2. Up to 3TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 24 DIMM slots
3. 1 PCI-E 3.0 x16 (LP) slot; 1 SIOM card support (flexible networking) Note: must bundle with Network card
4. IPMI 2.0 + KVM with dedicated LAN
5. 6 SAS3 or 4 NVMe + 2 SAS3 Hot-swap 2.5 drive bays
6. SAS3 support via Broadcom 3108; RAID 0, 1, 5, 6, 10, 50, 60
7. Video via Aspeed AST2500 BMC
8. 4 Heavy duty 8cm PWM fans with air shroud
9. 2200W Redundant Power Supplies Titanium Level (96%)
