Highlights:
  • Form Factor: Mid-Tower
  • Processor: 1x Intel Core X-Series Processor
  • Drives: 2x 5.25" External, 4x 2.5" Internal, 2x 2.5"/3.5" Internal
  • Supports up to 4x Double-Wide cards
Contact sales for pricing

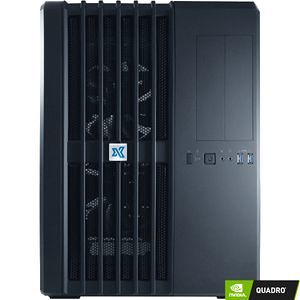

The Valence VWS-1542881-NQR is a mid-tower supporting 1x Intel Core X-Series processor, a maximum of 128 GB DDR4 memory, and up to 4x NVIDIA Quadro RTX GPUs.

NVIDIA Quadro RTX GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
Quadro RTX 800048 GB GDDR6672460857616.30.51295Specs
Quadro RTX 8000 (Passive)48 GB GDDR6624460857614.90.47250Specs
Quadro RTX 600024 GB GDDR6624460857616.30.51295Specs
Quadro RTX 6000 (Passive)24 GB GDDR6624460857614.90.47250Specs
Quadro RTX 500016 GB GDDR6870307238411.20.35200Specs
Quadro RTX 40008 GB GDDR641623042887.10.22160Specs

* Passive GPUs only for select systems that support passive cooling.

Processor & Chipset
Number of Processors Supported
1
Processor Manufacturer
Intel
Processor Socket
LGA 2066
Processor Type
  • Core X-Series
Processor Supported
  • Core i9
  • Core i7
  • Core i5
Chipset Manufacturer
Intel
Chipset Model
X299
Memory
Maximum Memory
  • 128 GB (6-Core or above CPU)
  • 64 GB (4-Core CPU)
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
8
Controllers
SATA3
  • Via X299 chipset
  • Supports Intel Rapid Storage Technology
  • RAID 0, 1, 5, 10
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 7x PCI-E 3.0/2.0 x16 slots
  • Single x16
  • Dual x16/x16
  • Triple x16/x16/x16
  • Quad x16/x16/x16/x16
  • Seven x16/x8/x8/x8/x8/x8/x8
Drive Bays
Fixed
  • 4x 2.5" drive bays
  • 2x combo 3.5" / 2.5" drive bays
Peripheral
2x 5.25" drive bays
Interfaces/Ports
Number of USB Ports
  • 11x USB 3.1 Gen 1 ports (8x rear, 3x mid-board)
  • 4x USB 2.0 ports (4x rear)
Number of SATA Interfaces
  • 8
NVMe
  • 1x M.2 PCIe 3.0 x4 Soclet 3, M Key. type 2242/2260/2280/22110 storage devices
  • 1x M.2 PCIe 3.0 x4 Soclet 3, M Key. type 2242/2260/2280 storage devices
  • 2x U.2 connector
  • LAN
    • 2x RJ45 1000BASE-T Ethernet LAN Ports
    Power Description
    Number of Power Supplies
    1
    Redundant Power Supplies
    No
    Maximum Power Supply Wattage
    2000 W
    Certification
    80 Plus Gold
    Physical Characteristics
    Color
    Black
    Form Factor
    Mid-Tower
    Height
    18.03"
    Width
    13.07"
    Depth
    16.33"
