Exxact Valence VWF-264600-VWC 1x Intel Core small form factor workstation - Video Wall Controller

MPN: VWF-264600-VWC
Highlights
  • Form Factor: Mini PC
  • Processor Supported: 1x Intel Core i3/i5/i7
  • Drive Bays: 2x 3.5 internal, 1x 5.25" Internal
  • 1x HDMI, 2x DisplayPort

We'll get you the best price.

Exxact Valence VWF-264600-VWC 1x Intel Core small form factor workstation - Video Wall Controller

MPN: VWF-264600-VWC
Highlights
  • Form Factor: Mini PC
  • Processor Supported: 1x Intel Core i3/i5/i7
  • Drive Bays: 2x 3.5 internal, 1x 5.25" Internal
  • 1x HDMI, 2x DisplayPort

The Valence VWF-264600-VWC is a Mini PC Video Wall Controller supporting 1x Intel Core i3/i5/i7 processor and a maximum of 64 GB DDR4 memory.

Performance Meets Flexibility

Featuring Matrox C420 LP, C680 or C900 multi-display video card, the Valence VWF-264600-VWC allows you to drive up to nine displays or projectors from a single small form factor system that delivers advanced multi-monitor capabilities and outstanding performance for a wide range of applications including enterprise, industrial, pro A/V, digital signage, security, control rooms and more.

Matrox C420 Low Profile Key Benefits

  • Drive up to four displays or projectors (max. res: 2560x1600) per card
  • Experience smooth video playback with 2 GB of memory per card
  • A fanless video card for increased reliability and silent operation
  • Prevent loose cabling with secure Mini-DisplayPort connectors
  • Customize your setup with the easy-to-use Matrox PowerDesk™ multi-display configuration and desktop management software

Matrox C680 Key Benefits

  • Drive up to six displays or projectors (max. res: 4096x2160) per card
  • Experience smooth video playback with 4 GB of memory
  • Simplify cabling by daisy-chaining DisplayPort™ 1.2 MST-capable displays
  • Prevent loose cabling with secure Mini-DisplayPort connectors
  • Customize your setup with the easy-to-use Matrox PowerDesk™ multi-display configuration and desktop management software

Matrox C900 Key Benefits

  • Drive up to nine displays or projectors (max. res: 1920x1200)
  • Experience smooth video playback with 4 GB of memory
  • Features nine Mini HDMI connectors and supports a maximum resolution of 1920 x 1200 per output
  • Minimize power consumption with an energy efficient card that consumes 75 W
  • Customize your setup with the easy-to-use Matrox PowerDesk™ multi-display configuration and desktop management software

Drive High-Impact Digital Signage

The Valence VWF-264600-VWC system delivers multi-monitor combinations that can be used for a 3x3, 3x2, or 2x2 video wall from a single system to deliver high-impact, engaging content. This can provide users to create dynamic digital signage installations including attractive in-store retail displays, menu boards in restaurants, and display walls at tradeshow & other live events, etc.

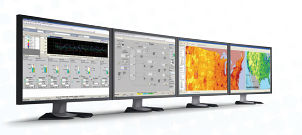

Drive demanding applications with increased reliability and performance.

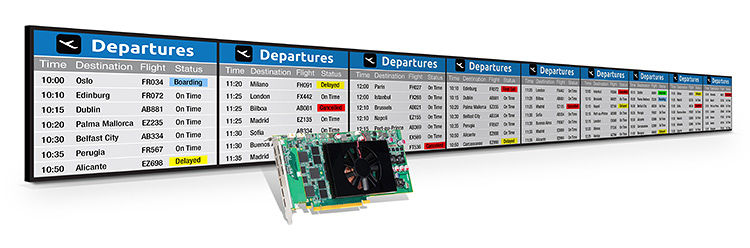

Showcase dynamic multimedia content across high-impact video walls.

Multi-Display for Control Rooms

The Valence VWF-264600-VWC system can be operated in control rooms and confidently display information across multi-display desktops and video walls. Leveraging 2 GB memory (4 GB with C680 and C900) of the Matrox C-Series graphics, the system can perform smooth visual for SCADA, VMS, and other applications.


View more critical information across an expansive configuration.


Output high-quality video content so operators can review critical information without compromise

GPU:

  • 1x Matrox C420, C680, or C900
  • 4x Mini DisplayPort (C420), 6x Mini DisplayPort (C680), or 9x Mini HDMI (C900)
  • Low profile bracket (C420)
  • 2GB GDDR5 Graphics Memory (C420)
  • 4GB GDDR5 Graphics Memory (C680, C900)
  • 2560 x 1600 Maximum Digital Display Resolution/Per Monitor (C420)
  • 4096 x 5160 Maximum Digital Display Resolution/Per Monitor (C680)
  • 1920 x 1200 Maximum Digital Display Resolution/per Monitor (C900)

Reference SKU:

  • Valence SH170-MATROX4 (Shuttle SH170R6 XPC Cube w/Matrox C420)
  • Valence SH170-MATROX6 (Shuttle SH170R6 XPC Cube w/Matrox C680)
  • Valence SH170-MATROX9 (Shuttle SH170R6 XPC Cube w/Matrox C900)
