Highlights:
  • Form Factor: Mini-PC
  • Processor Supported: 1x Intel Core i7-7700T
  • Drive Bays: 1x 2.5" Internal
  • NVIDIA Quadro P3000, 2x HDMI 2.0, 2x DisplayPort 1.4
Contact sales for pricing

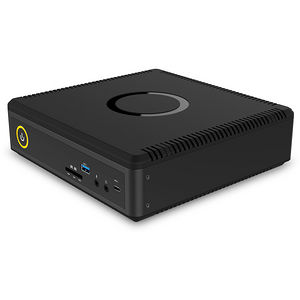

The Valence VWF-1686694 is a Mini-PC featuring 1x Intel Core i7-7700T processor and a maximum of 32 GB DDR4 memory. Integrated advanced visualization and high-performance computing, the workstation-class Valence VWF-1686694 is one of the world's first Quadro P Series graphics powered Mini PCs. The superlative performance of enterprise desktop graphics trusted by millions of creative and technical professionals is endorsed in a sleek and compact enclosure, providing a light and portable workstation for graphics and data-intensive applications.

Features:

  • 4K Ultra HD powered by NVIDIA Quadro P3000
  • 802.11 AC WiFi
  • HD Audio
  • SDXC Card Reader
  • Dual Gigabit LAN
Processor & Chipset
Number of Processors Supported
1
Processor Socket
FCLGA1151
Processor Type
  • Core
Processor Model
  • i7-7700T
Thermal Design Power (TDP)
N/A
Chipset Manufacturer
Intel
Chipset Model
N/A
Memory
Maximum Memory
32 GB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2400/PC4-19200
Number of Total Memory Slots
2
Controllers
SATA3
  • Via Intel chipset
Display & Graphics
Graphics Controller Manufacturer
NVIDIA
Graphics Controller Model
Quadro P3000
Network & Communication
Ethernet Technology
  • 1000BASE-T
Drive Slots
Internal
  • 1x 2.5" drive slot
  • 1x M.2 slot (PCI-E x4 or SATA, 2242/2260/2280)
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 2.0 Ports
2 (rear)
Number of USB 3.0 Ports
2 (rear)
Number of USB 3.1 Ports
2 (front, 1x Type-C))
Number of SATA Interfaces
2
3-in-1 card reader
  • SD
  • SDHC
  • SDXC
LAN/Wireless
  • 2x RJ45 1000BASE-T Ethernet LAN Ports
  • 802.11ac WiFi
  • Bluetooth 4.2
Onboard Video
  • 2x HDMI 2.0 (3840x2160 @ 60Hz)
  • 2x DisplayPort 1.4 (4096x2160 @ 60Hz)
Audio
  • Onboard 8 channel digital audio via HDMI
  • Analog stereo output
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
N/A
Physical Characteristics
Color
Black
Form Factor
Mini-PC
Height
5.08"
Width
10.4"
Length
10.8"
