Highlights:
  • Rack Height: 4U
  • Processor Supported: 2x Intel Xeon Scalable Family
  • Drive Bays: 24x 3.5" Hot-Swap
  • Supports up to 20x NVIDIA Tesla T4 GPUs
Contact sales for pricing

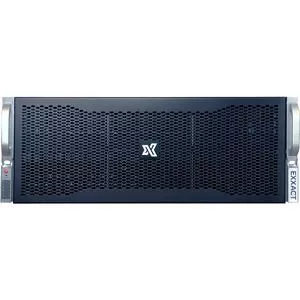

The TensorEX TS4-1910483-DPN is a 4U rack mountable Deep Learning NVIDIA GPU Solution supporting 2x Intel Xeon Scalable processors, a maximum of 3 TB DDR4 memory, and up to 20x NVIDIA Tesla T4 GPUs.

GPUs have provided groundbreaking performance to accelerate deep learning research with thousands of computational cores and up to 100x application throughput when compared to CPUs alone. Exxact has developed the Deep Learning DevBox, featuring NVIDIA GPU technology coupled with state-of-the-art PCIe peer to peer interconnect technology, and a full pre-installed suite of the leading deep learning software, for developers to get a jump-start on deep learning research with the best tools that money can buy.

Features:

  • Supports 2x Intel Xeon Scalable family processor (Skylake-SP)
  • 20x Tesla T4 (8.1 TFlops of single precision, 320+ GB/s of memory bandwidth, and 16 GB GDDR6 of memory per board) GPUs
  • NVIDIA DIGITS software providing powerful design, training, and visualization of deep neural networks for image classification
  • Pre-installed standard Ubuntu 18.04 w/ Deep Learning software stack
  • Google TensorFlow software library
  • Automatic software update tool included
  • A turn-key server with superior PCIe peer to peer topology

Deep Learning Software Stack


Ubuntu Deep Learning Software Stack

NVIDIA CUDA
cuDNN
theano
Torch
Keras
Docker
NCCL
Caffe
Bidmach
OpenCV
RAPIDS
Caffe2
Anaconda
TensorFlow
MXNet

Exxact Docker NGC Ready Deep Learning Stack

Includes configuration and testing for the following NGC Ready Docker containers:

NVIDIA CUDA
NVIDIA Digits
Caffe
PyTorch
TensorFlow
RAPIDS

Additional Docker Images:

Portainer

Optional Software

SINGA
Singularity
Microsoft Cognitive Toolkit
Deep Learning NVIDIA GPU Solutions

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Number of UPI links
TBD
Thermal Design Power (TDP)
TBD
GPU
20x NVIDIA Tesla T4
Chipset Manufacturer
Intel
Chipset Model
TBD
Memory
Maximum Memory
3 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
  • TBD
Display & Graphics
Graphics Controller Manufacturer
TBD
Graphics Controller Model
TBD
Network & Communication
Ethernet Technology
  • TBD
I/O Expansions
PCI Express
  • 20x PCI-E 3.0 x16 slots
Drive Bays
Hot-swap
  • 24x 3.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
TBD
Number of SATA Interfaces
TBD
LAN
  • TBD
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes (2+2)
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
TBD
