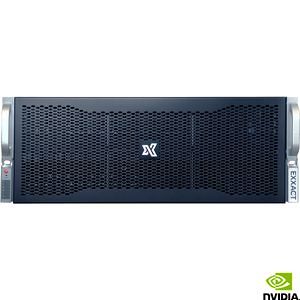

Exxact TensorEX TS4-1686449-NTS 4U 2x Intel Xeon processor - 8x NVIDIA® Tesla® V100 SXM2 GPUs

MPN # TS4-1686449-NTS
Highlights:
  • Rack Height: 4U
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays: 16x 2.5" Hot-Swap (8x NVMe)
  • Supports up to 8x NVIDIA Tesla V100 SXM2 GPUs
Contact sales for pricing

The TensorEX TS4-1686449-NTS is a 4U rack mountable server supporting 2x Intel Xeon Scalable family processors, a maximum of 3 TB DDR4 memory, and eight Tesla V100 Volta GPUs (SXM2), with up to 150GB/s NVLINK 2.0 GPU-GPU interconnect.

NVIDIA Tesla V100 SXM2 GPU Options

ModelPart #
Tesla V100 SXM2 32 GB900-2G503-0010-000
Tesla V100 SXM2 16 GB900-2G503-0000-000
NVIDIA Tesla GPU Servers

LEARN MORE
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Number of UPI
3 UPI up to 10.4 GT/s
GPU
8x NVIDIA Tesla V100 Volta SXM2
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
3 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
24
Controllers
SATA3
  • Via C621 chipset
  • RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots (Low-profile, GPU tray for GPUDirect RDMA)
  • 2x PCI-E 3.0 x16 slots (Low-profile, CPU tray)
Drive Bays
Hot-swap
  • 16x 2.5 hot-swap drive bays
  • Supports 8x NVMe drives
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
8
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port / Header
1x CPM port (header)
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2200 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.6"
Depth
31.7"
