Highlights:
- Form Factor: 4U Rackmountable / Tower
- Processor: 2x Intel Xeon Scalable family processor
- Drive Bays: 8x 3.5" Hot-Swap
- Supports up to 2x Double-Wide cards

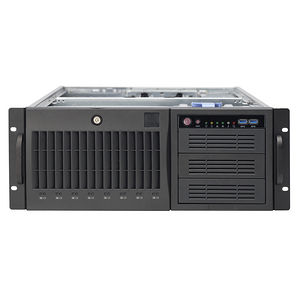

The TensorEX TS4-1675714-NQR is a 4U rack mountable tower supporting 2x Intel Xeon processor Scalable family, a maximum of 2 TB DDR4 memory, and up to 2x NVIDIA Quadro RTX GPUs.
NVIDIA Quadro RTX GPU Options
Model | Standard Memory | Memory Bandwidth (GB/s) | CUDA Cores | Tensor Cores | Single Precision (TFLOPS) | Double Precision (TFLOPS) | Power (W) | Explore | |
---|---|---|---|---|---|---|---|---|---|
![]() | RTX A6000 | 48 GB GDDR6 | 768 | 10752 | 336 | TBD | TBD | 300 | Specs |
![]() | A40 | 48 GB GDDR6 | 696 | 10752 | 336 | TBD | TBD | 300 | Specs |
![]() | Quadro RTX 8000 | 48 GB GDDR6 | 672 | 4608 | 576 | 16.3 | 0.51 | 295 | Specs |
![]() | Quadro RTX 8000 (Passive) | 48 GB GDDR6 | 624 | 4608 | 576 | 14.9 | 0.47 | 250 | Specs |
![]() | Quadro RTX 6000 | 24 GB GDDR6 | 624 | 4608 | 576 | 16.3 | 0.51 | 295 | Specs |
![]() | Quadro RTX 6000 (Passive) | 24 GB GDDR6 | 624 | 4608 | 576 | 14.9 | 0.47 | 250 | Specs |
![]() | Quadro RTX 5000 | 16 GB GDDR6 | 870 | 3072 | 384 | 11.2 | 0.35 | 200 | Specs |
![]() | Quadro RTX 4000 | 8 GB GDDR6 | 416 | 2304 | 288 | 7.1 | 0.22 | 160 | Specs |
* Passive GPUs only for select systems that support passive cooling.
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
2 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
16
Controllers
SATA3
- Via C621 chipset
- RAID 0, 1, 5, 10
Audio
RealTek ALC888 7.1 High Definition Audio with S/PDIF header
Network & Communication
Ethernet Technology
- 1000BASE-T
I/O Expansions
PCI Express
- 4x PCI-E 3.0 x16 slots (2x double-wide cards)
- 2x PCI-E 3.0 x8 slots
M.2
- 1x PCI-E 3.0 x4
- M-Key 2260/2280/22110
Drive Bays
Hot-swap
- 8x 3.5" Hot-swap drive bays
- 2x 5.25" Peripheral drive bays
- 1x 5.25" Bay for Floppy drive
Interfaces/Ports
Total Number of USB Ports
8
Number of USB 3.0 Ports
6 (2x front, 4x rear)
Number of USB 3.1 Ports
2 (rear)
Number of SATA Interfaces
- 10x SATA3 ports
LAN
- 2x RJ45 1000BASE-T Ethernet LAN Ports
Serial Port / Header
1x COM port
Power Description
Number of Power Supplies
1
Redundant Power Supplies
No
Maximum Power Supply Wattage
1200 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable / Tower
Rack Height
4U
Height
17.8"
Width
7.0"
Depth
25.5"
