Highlights:
- Rack Height: 4U
- Processor Supported: 2x Intel Scalable Family
- Drive Bays: 14x 2.5" Hot-Swap
- Supports up to 8x Double-Wide cards

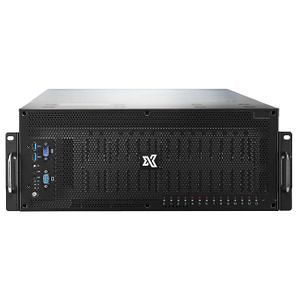

The TensorEX TS4-1598415-FRC is a 4U rack mountable FastROCS Certified GPU System supporting 2x Intel Xeon Scalable family processors, a maximum of 1.5 TB DDR4 memory, and up to 8x NVIDIA Tesla GPUs.
Certified FastROCS GPU System Highlights
- Certified life science applications: AMBER, GROMACS, FastROCS and more
- Designed to Meet the Requirements for Atomistic Molecular Dynamics Simulations
- Preinstalled Computing Solutions, Designed in Collaboration and Certified by Software Developers
- Fully Customizable to Meet Your Budget
- Preinstalled, Tested and Optimized
- 3 Year Warranty
- Ideal for Researchers
NVIDIA Tesla GPU Options
| Model | Standard Memory | Memory Bandwidth (GB/s) | CUDA Cores | Tensor Cores | Single Precision (TFLOPS) | Double Precision (TFLOPS) | Power (W) | Explore | |
|---|---|---|---|---|---|---|---|---|---|
 | A100 40 GB PCI-E 4.0 | 40 GB HBM2e | 1555 | 6912 | 432 | 19.5 | 9.7 | 400 | Specs |
 | V100S 32 GB PCI-E 3.0 | 32 GB HBM2 | 1134 | 5120 | 640 | 16.4 | 8.2 | 250 | Specs |
| V100 32 GB PCI-E 3.0 | 32 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
| V100 16 GB PCI-E 3.0 | 16 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
 | P100 16 GB PCI-E 3.0 | 16 GB HBM2 | 732 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
| P100 12 GB PCI-E 3.0 | 12 GB HBM2 | 549 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
 | T4 PCI-E 3.0 | 16 GB GDDR6 | 320 | 2560 | 320 | 8.1 | 0.24 | 75 | Specs |
 | P4 PCI-E 3.0 | 8 GB GDDR5 | 192 | 2560 | - | 5.5 | 0.17 | 75 | Specs |
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
1.5 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
SATA3
- Via C621 chipset
- Intel RST RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
- 10GBASE-T
I/O Expansions
PCI Express
- 9x PCI-E 3.0 x16 slots (supports 8x double-wide cards)
- 2x PCI-E 3.0 x8 slots (for mezzanine)
Drive Bays
External
14x 2.5" hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (front)
Number of SATA Interfaces
14
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
3
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
3200 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
6.93"
Width
17.24"
Depth
30.31
