Highlights:
- Rack Height: 4U
- Processor: 2x Intel Xeon Scalable family
- Drive Bays: 12x 3.5" Hot-Swap
- Up to 10x Double-Wide cards in a Single-Root Complex

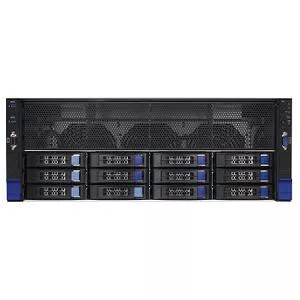

The TensorEX TS4-156862753-NTS is a 4U rack mountable server supporting 2x Intel Xeon Scalable Family processors, a maximum of 3 TB DDR4 memory, and up to 10x NVIDIA Tesla GPUs.
NVIDIA Tesla GPU Options
| Model | Standard Memory | Memory Bandwidth (GB/s) | CUDA Cores | Tensor Cores | Single Precision (TFLOPS) | Double Precision (TFLOPS) | Power (W) | Explore | |
|---|---|---|---|---|---|---|---|---|---|
 | A100 40 GB PCI-E 4.0 | 40 GB HBM2e | 1555 | 6912 | 432 | 19.5 | 9.7 | 400 | Specs |
 | V100S 32 GB PCI-E 3.0 | 32 GB HBM2 | 1134 | 5120 | 640 | 16.4 | 8.2 | 250 | Specs |
| V100 32 GB PCI-E 3.0 | 32 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
| V100 16 GB PCI-E 3.0 | 16 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
 | P100 16 GB PCI-E 3.0 | 16 GB HBM2 | 732 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
| P100 12 GB PCI-E 3.0 | 12 GB HBM2 | 549 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
 | T4 PCI-E 3.0 | 16 GB GDDR6 | 320 | 2560 | 320 | 8.1 | 0.24 | 75 | Specs |
 | P4 PCI-E 3.0 | 8 GB GDDR5 | 192 | 2560 | - | 5.5 | 0.17 | 75 | Specs |
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Thermal Design Power (TDP)
Up to 205W
Chipset Manufacturer
Intel
Chipset Model
C621
Memory
Maximum Memory
3 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
24
Controllers
SATA3
- Via C621 chipset
- Intel RST RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
- 10GBASE-T
I/O Expansions
PCI Express
- 10x PCI-E 3.0 x16 slots (supports 10x double-wide cards in a single-root complex)
- 1x PCI-E 3.0 x16 slot
Drive Bays
External
12x 3.5" hot-swap drive bays (4x NVMe)
Interfaces/Ports (per node)
Total Number of USB Ports
4
Number of USB 3.0 Ports
4 (2x front, 2x rear)
Number of SATA Interfaces
12
Number of NVMe Interfaces
4
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
Onboard Video
1x VGA Connector
Serial/COM
1x DB-9 COM port
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
4800 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
6.9"
Width
17.26"
Depth
32.68
