Highlights:
  • Form Factor: 4U
  • Processor: 2x Intel Xeon Scalable family
  • Drive Bays:24x 2.5" Hot-Swap
  • Up to 10x PCI-E 4.0 x16 Double-Wide cards
Contact sales for pricing

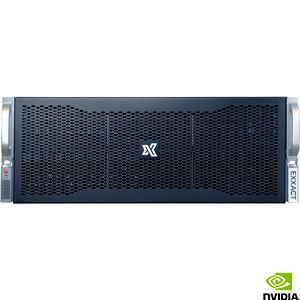

The TensorEX TS4-133524070-NTS is a 4U rack mountable server supporting 2x Intel Xeon Scalable processors a maximum of 8 TB DDR4 memory, and up to 10x NVIDIA Tesla GPUs in a single or dual-root complex.

NVIDIA SXM4 GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
A100 40 GB SXM440 GB HBM2e1555691243219.59.7400--
NVIDIA Tesla GPU Servers

Processor & Chipset
Number of Processors Supported
2
Processor Socket
N/A
Processor Type
Xeon
Processor Supported
  • N/A
Number of UPI links
N/A
Thermal Design Power (TDP)
N/A
Chipset Manufacturer
Intel
Chipset Model
N/A
Memory
Maximum Memory
8 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
32
Controllers
SATA3
  • RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2600 BMC
Network & Communication
Ethernet Technology
  • N/A
I/O Expansions
PCI Express
  • 12x PCI-E 4.0 x16 slots (Supports 10x double-wide cards)
  • Single or Dual root complex
Drive Bays
Hot-swap
  • 24x 2.5" Hot-swap drive bays
Interfaces/Ports
Total Number of USB Ports
N/A
Number of SATA Interfaces
24
LAN
  • 1x RJ45 IPMI dedicated LAN Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes (2+2)
Maximum Power Supply Wattage
N/A
Certification
N/A
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
7.0"
Width
17.2"
Depth
29"
