Highlights:
  • Rack Height: 4U
  • Processor: 2x AMD EPYC 7002-Series
  • Drive Bays: 8x 2.5" Hot-Swap
  • 8x NVIDIA A100 SXM4 GPUs
Contact sales for pricing

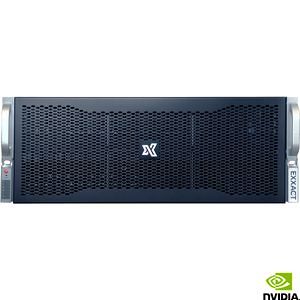

The TensorEX TS4-130921967-NTS is a 4U rack mountable server supporting 2x AMD EPYC 7002-Series processors, a maximum of 4 TB DDR4 memory, and 8x NVIDIA A100 Ampere GPUs (SXM4), with up to 600 GB/s NVLINK interconnect.

NVIDIA SXM4 GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
A100 40 GB SXM440 GB HBM2e1555691243219.59.7400--
NVIDIA Tesla GPU Servers

Processor & Chipset
Number of Processors Supported
2
Processor Socket
Socket SP3
Processor Type
EPYC
Processor Supported
  • 7002-Series
Thermal Design Power (TDP)
240 W
GPU
8x NVIDIA A100 Ampere SXM4
Chipset Manufacturer
N/A
Chipset Model
SoC
Memory
Maximum Memory
4 TB
Memory Technology
  • DDR4 SDRAM
Memory Standard
DDR4-3200/PC4-25600
Number of Total Memory Slots
32
Controllers
SATA3
  • Via SoC
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
  • 1000BASE-T
I/O Expansions
PCI Express
  • 8x PCI-E 4.0 x16 slots (Low-Profile)
Drive Bays
Hot-swap
  • 8x 2.5 hot-swap drive bays
  • Supports 4x NVMe drives
Interfaces/Ports
Total Number of USB 3.0 Ports
2
Number of SATA Interfaces
8
Number of NVMe Interfaces
4
LAN
  • 2x RJ45 1000BASE-T Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port / Header
1x COM Header
TPM
1x TPM Header
Power Description
Number of Power Supplies
4
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
3000 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
4U
Height
10.32"
Width
17.6"
Depth
35.43"
