Highlights:
  • Rack Height: 3U
  • File System: OpenZFS
  • Memory: 256 GB
  • Capacity: Up to 4.8 PB
Contact sales for pricing

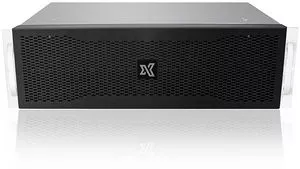

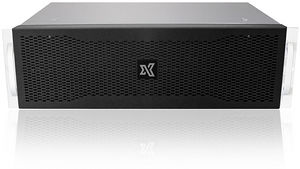

The TensorEX TS3-264513-NAS is a 3U rack mountable storage server using OpenZFS file system, 256 GB of memory, and up to 4.8 PB of storage capacity. The TensorEX TS3-264513-NAS OpenZFS Storage Controller has been developed and optimised to meet the demand for more powerful, reliable, and flexible storage from businesses today. It is designed to offer a solution that combines the flexibility of unified storage, the performance and efficiency of solid state flash drives, the capacity of hard disks, and the familiarity and simplified management of the FreeNAS user interface. With support for single or redundant storage controllers, a second storage controller can be added later to upgrade to High Availability. The OpenZFS FileSystem supports snapshots, thin provisioning, self-healing filesystem, online capacity expansion, ZFS Stripe, mirror, RAID-Z, RAID-Z2, and RAID-Z3. The TensorEX TS3-264513-NAS also supports popular file-based protocols like CIFS, NFS, AFP, FTP, and WebDAV. Remote administration is achieved via HTTP/HTTPS and REST API. For optimized bandwith, there is support for 10GbE and 8Gb fibre channel interfaces.

Features:

  • Hybrid Storage
  • Supports single or redundant storage controllers
    • Second storage controller can be added later to upgrade to HA
  • Up to 4.8PB capacity
  • 256GB RAM
  • Up to 4TB flash Read cache
  • Write Cache Included
  • Up to 10x1gbE, 4x10gbE or 4x40gbE Interfaces per node
  • Up to 2x8gb Fibre Channel Interfaces per node
Software Specification
File-Based Protocols
  • CIFS/SMB, SMBv3, SMBv4
  • NFS v3, v4
  • AFP
  • FTP
  • WebDAV
Block-Based Protocols
  • iSCSI
  • Fibre Channel
Directory Services
  • Active directory (AD)
  • Kerberos
  • Lightweight Directory Access Protocol (LDAP)
  • Apple Open Directory
  • Network Information Service (NFS)
Networking
  • Port Trunking/NIC teaming (Modes: Balance - rr, Active Backup, Balance xor, Broadcast, IEEE 8023ad Link Aggregation)
  • VLAN Support
  • DHCP client, DHCP Server
Virtualization
  • VMware Ready (ESXi 5.5), VAAI Block, ESXi Snapshot integration, VM Warn/Stun
  • Citrix Ready Verified (Citrix XenServer 6.0)
  • Certified for Windows Server 2012 R2 (includes Hyper-V), ODX
Supported Browsers
  • Internet Explorer 7.x and later
  • Firefox 3.x and later
  • Safari 3.x and later
  • Chrome 3.x and later
Filesystem
  • Intelligent in-line compression
  • Snapshots and clones
  • Thin provisioning
  • Self-healing file system
  • Online capacity expansion
  • Virtual block devices
  • In-line deduplication
  • ZFS Stripe, ZFS Mirror, RAID-Z, RAID-Z2, RAID-Z3
Backup
  • ZFS Remote Replication
  • Bidirectional Remote Replication
  • rsync
Remote Administration
  • HTTP/HTTPS Web Interface
  • Email Alerts
  • Remote Syslog Client
  • Backup & Restore System Settings and State
  • Restore to Factory Default
  • Resource Monitor
  • Log and Event Collection
  • Automatic Online Updates
  • SNMP server/MIB
  • IPMI remote console and power management
  • REST APT
Supported Operating Systems
  • Microsoft Windows XP, Vista (32/64-bit), 7 (32/64-bit, 8/8.1, 10, Server 2003/2008 R2/2012 R2/2016
  • Macintosh OS X (all versions)
  • Linux
  • Unix
  • BSD
Hardware Specification
Available Drives
  • 7.2k RPM: 2TB, 3TB, 4TB, 6TB, and 8TB
  • 10k RPM: 300GB, 600GB, 900GB, 1.2TB, and 1.8TB
  • 15k RPM: 300GB, 450GB, and 600GB
  • SSD: 250GB/400GB/500GB/800GB/1TB/1.6TB/1.92TB/3.84TB, L2ARC/ZIL
  • All drives are SAS
Power Management
  • Dual redundant hot-Swappable high-efficiency (90%+) power supplies
  • Remote power-on/off
  • UPS Signal Response and Alerts
Disk Management
  • Hot Spares
  • Hot-Swappable drives
  • Bad Block Scan + HDD S.M.A.R.T.
  • Enclosure Monitoring and Alert LEDs
  • ISO Mounting Support
  • Hard Drive Activity/Alert LEDs
  • Hardware-Accelerated Disk Encryption
Physical Parameters
  • DIMENSIONS 29”x19”x5.25”(LxWxH)
  • Operating Temperature: 0°C to 35°C
  • Non-operating Temperature: -20°C to 70°C
  • Humidity: 5% to 95% noncondensing
  • RoHS 6/6 compliant
