Highlights:
  • Rack Height: 2U
  • Processor Supported: 2x IBM POWER8 with NVLINK
  • Drive Bays: 2x 2.5" Hot-Swap
  • Supports up to 4x NVIDIA Tesla P100 SXM2 GPUs
Contact sales for pricing

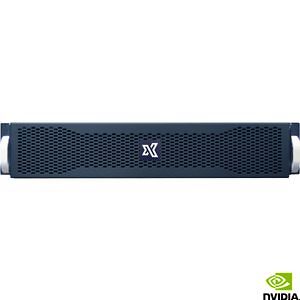

The TensorEX TS2-306052-NTS is a 2U rack mountable server supporting 2x IBM POWER8 processors with NVLINK, a maximum of 1 TB DDR4 memory, and 4x NVIDIA Tesla P100 SXM2 GPUs.

NVIDIA Tesla GPU Servers

Processor & Chipset
Number of Processors Supported
2
Processor Socket
POWER8
Processor Type
POWER8
Processor Supported
POWER8 with NVLink
Thermal Design Power (TDP)
Up to 190W
GPU
4x NVIDIA Tesla P100 SXM2
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-1600/PC4-12800
Number of Total Memory Slots
32
Controllers
SATA3
  • Integrated onboard
Display & Graphics
Graphics Controller Manufacturer
N/A
Graphics Controller Model
N/A
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots
  • 3x PCI-E 3.0 x8 slots
Drive Bays
Hot-swap
2x 2.5" Hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
2
LAN
  • 4x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 IPMI LAN Port
Onboard Video
1x VGA Connector
Serial/Header
1x COM port
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
N/A
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.43"
Width
17.48"
Depth
N/A
