Highlights:
  • Rack Height: 1U
  • Processor Supported: 2x Intel Xeon Scalable family
  • Ethernet Technology: 10GBASE-T
  • Coprocessor: Up to 4x NVIDIA Tesla GPUs
Contact sales for pricing

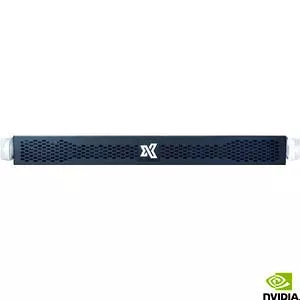

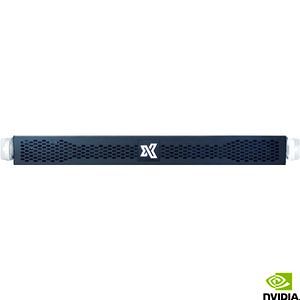

The TensorEX TS1-672338-NTS is a supercomputing module designed and optimized for computing accelerators such as the NVIDIA Tesla GPU. The TensorEX TS1-672338-NTS supports up to 4 double width GPU cards to offer vast gains in processing time for the most supercomputing intensive applications, from cutting-edge rendering farms to the latest simulations in leading scientific research.

NVIDIA Tesla GPU Options

ModelStandard MemoryMemory Bandwidth (GB/s)CUDA CoresTensor CoresSingle Precision (TFLOPS)Double Precision (TFLOPS)Power (W)Explore
A100 40 GB PCI-E 4.040 GB HBM2e1555691243219.59.7400Specs
V100S 32 GB PCI-E 3.032 GB HBM21134512064016.48.2250Specs
V100 32 GB PCI-E 3.032 GB HBM29005120640147250Specs
V100 16 GB PCI-E 3.016 GB HBM29005120640147250Specs
P100 16 GB PCI-E 3.016 GB HBM27323584-9.34.7250Specs
P100 12 GB PCI-E 3.012 GB HBM25493584-9.34.7250Specs
T4 PCI-E 3.016 GB GDDR632025603208.10.2475Specs
P4 PCI-E 3.08 GB GDDR51922560-5.50.1775Specs
NVIDIA Tesla GPU Servers

Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
  • Bronze 31XX
  • Bronze 32XX
  • Silver 41XX
  • Silver 42XX
  • Gold 51XX
  • Gold 52XX
  • Gold 61XX
  • Gold 62XX
  • Platinum 81XX
  • Platinum 82XX
Thermal Design Power (TDP)
205 W
UPI
3 UPI up to 10.4 GT/s
Memory
Maximum Memory
1.5 TB
Memory Technology
  • DDR4 SDRAM
  • DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
12
Controllers
Controller Type
SATA3
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
  • 4x PCI-E 3.0 x16 slots (Supports 4x double wide card)
  • 1x PCI-E 3.0 x16 slot (Low-profile)
  • 1x PCI-E 3.0 x8 slot (Low-profile)
Drive Bays
Hot-swap
2x 2.5" Hot-swap drive bays
Internal
2x 2.5" drive bays
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 3.0 Ports
4 (rear)
Number of SATA Interfaces
4
Number of NVMe Ports
2
LAN
  • 2x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Header
1x Fast UART 16550 header
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
35.2"
