Highlights:
- Rack Height: 1U
- Processor Supported: 2x Intel Xeon Scalable family
- Drive Bays: 2x 2.5" Hot-Swap, 2x 2.5" Internal
- Supports up to 4x NVIDIA V100 SXM2

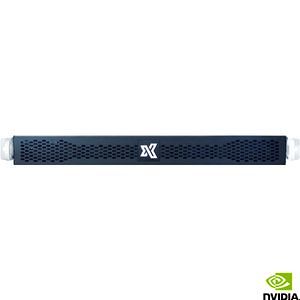

The TensorEX TS1-1595479-NTS is a 1U rack mountable server supporting 2x IntelXeon Scalable family processors, a maximum of 1.5 TB DDR4 memory, and up to 4x NVIDIA V100 SXM2 GPUs, with 150GB/s NVLINK 2.0 GPU-GPU interconnect. It is designed for Deep Learning, Artificial Intelligence, Big Data Analytics, High-Performance Computing, Research/National Laboratories, Astrophysics, and Business Intelligence. Optional Infiniband or Omni-Path Network Adapter.
NVIDIA Tesla V100 SXM2 GPU Options
| Model | Part # |
|---|---|
| V100 SXM2 32 GB | 900-2G503-0010-000 |
| V100 SXM2 16 GB | 900-2G503-0000-000 |
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Thermal Design Power (TDP)
Up to 165W
UPI
3 UPI up to 10.4GT/s
Chipset Manufacturer
Intel
Chipset Model
C621
GPU
4x NVIDIA V100 SXM2
Memory
Maximum Memory
1.5 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
12
Controllers
Controller Type
SATA3
RAID Supported
Yes
RAID Levels
0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
- 4x PCI-E 3.0 x16 slots
Drive Bays
Hot-swap
2x 2.5" Hot-swap drive bays
Fixed
2x 2.5" internal drive bays
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
Number of SATA Interfaces
4
LAN
- 2x RJ45 10GBASE-T LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port
1x Fast UART 16550 Header
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
80 Plus Titanium
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
35.2"
