MPN: PDU41101

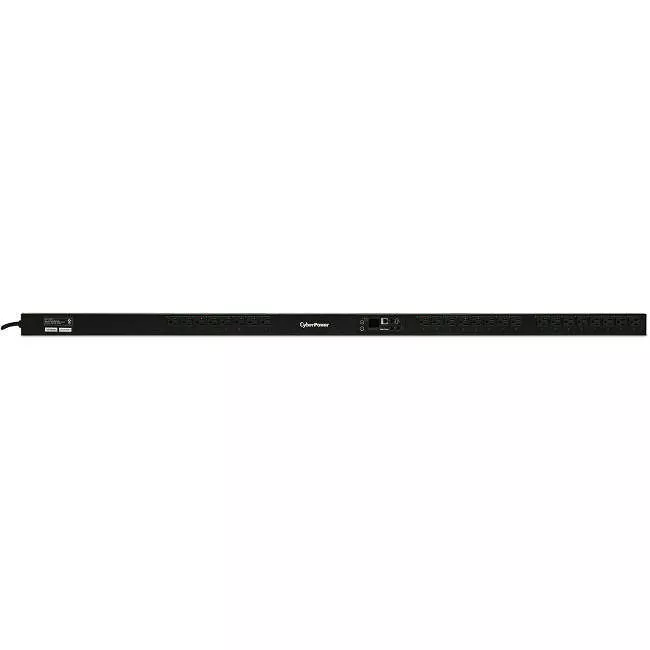

CyberPower PDU41101 Switched PDU 120 VAC 20A

Highlights

Output Voltage:

120 V AC

Rack Height:

Product Type:

PDU

Condition:

New

About

Specifications

General Information

Manufacturer

CyberPower Systems, Inc

Manufacturer Part Number

PDU41101

Manufacturer Website Address

https://www.cyberpowersystems.com/

Brand Name

CyberPower

Product Series

Switched PDU

Product Model

PDU41101

Product Name

PDU41101

Product Type

PDU

Technical Information

PDU Type

Switched

Phase

Single Phase

Plug/Connector Type

NEMA L5-20P

Receptacle Type

NEMA 5-20R

Receptacle Detail

24 x NEMA 5-20R

Features

LCD Display

Power Description

Input Voltage

120 V AC

Input Voltage Range

100 V AC - 120 V AC

Output Voltage

120 V AC

Output Voltage Range

100 V AC - 120 V AC

Input Current

20 A

Input Frequency

60 Hz

Management

Protocols:

IPv4
TCP/IP
UDP
SNMPv1
HTTP
NTP
DNS
Telnet
DHCP
SMTP
FTP
IPv6
SNMPv3
HTTPs
SSH
SSL
TLS
LDAP(S)
RADIUS
Syslog
Windows AD

Remote Outlet Switching

Yes

Interfaces/Ports

Network (RJ-45)

Yes

Physical Characteristics

Color Family

Black

Product Color

Black

Product Material

Metal

Mounting Orientation

Horizontal/Vertical

Mount Type

Rack-mountable

Wall-mountable

Form Factor

Rack

Rack Height

Cord Length

10 ft

Height

2.2"

Width

1.9"

Depth

1.9"

Length

66.6"

Weight (Approximate)

15.43 lb

Environmental Conditions

Minimum Operating Temperature

32°F (0°C)

Maximum Operating Temperature

140°F (60°C)

Minimum Storage Temperature

5°F (-15°C)

Maximum Storage Temperature

149°F (65°C)

Miscellaneous

Additional Information

Physical Dimensions - (WxHxD) (cm) : 4.78 x 166.62 x 4.78 (cm)

Physical Dimensions - (WxHxD) (in) : 1.88 x 65.6 x 1.88 (in)

Physical Dimensions - (WxHxD) (mm) : 48 x 1666 x 48 (mm)

Weight (kg) : 7.0

Weight (lb) : 15.43

Shipping Dimensions - (WxHxD) (cm) : 189.23 x 11.43 x 17.78 (cm)

Shipping - Dimensions (WxHxD, in) : 74.5 x 4.5 x 7 (in)

Shipping - Dimensions (WxHxD, mm) : 1892.3 x 114.3 x 177.8 (mm)

Shipping - Weight (kg) : 8.89

Shipping - Weight (lb) : 19.6

Cord Length : 10 ft (3.0 m)

Derated Input Current : 16 A

Input Frequency Range : 50 Hz - 60 Hz

Input Plug Type : NEMA L5-20P (5-20P Adapter)

Maximum Input Current : 20A

Nominal Input Voltage : 100 - 120 VAC

Power Cord Length : 10 ft (3 m)

Circuit Quantity : 1

Nominal Output Voltage : 100 - 120 VAC

Number of Outlets : 24

Outlets - Total : 24

Outlet Type COMPUTED : 24 - NEMA 5-20R

Overload Protection : None

USB Charge Port : No

Environmental Sensor : Optional, via RJ45

Hardware Connection Port : RJ45

LCD : Multifunction LCD

Outlet switching : Yes

Protocols : IPv4|TCP/IP|UDP|SNMPv1|HTTP|NTP|DNS|Telnet|DHCP|SMTP|FTP|IPv6|SNMPv3|HTTPs|SSH|SSL|TLS|LDAP(S)|RADIUS|Syslog|CLI|Windows AD

Upgradeable firmware : Yes

Color : Black

Form Factors Supported : Horizontal or Vertical Wallmount

Material of Construction : Metal

Rack Height : 0U

Operating Elevation : 0 - 11483 ft (0 - 3500 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 140 °F (0 - 60 °C)

Storage Elevation : 0 - 49213 ft (0 - 14999 m)

Storage Temperature : 5 - 149 °F (-15 - 65 °C)

Safety : UL62368

Extended Warranty Option : WEXT5YR-PDU1B

Product Warranty : 3 Year Limited Warranty

Application/Usage

Data Center

Network Device

Certifications & Standards

UL62368
FCC Class A
ICES-003: Issue 7

Energy Star

Country of Origin

China

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)

UL Listed

Yes

Warranty

Limited Warranty

3 Year
