The professional Acer P7 Series employs advanced technologies and convenient setup utilities to deliver clear, persuasive presentations in large business venues. Enterprising innovators like you will appreciate the high resolution, brightness and contrast ratio to drive your ventures toward greater success.
About
The professional Acer P7 Series employs advanced technologies and convenient setup utilities to deliver clear, persuasive presentations in large business venues. Enterprising innovators like you will appreciate the high resolution, brightness and contrast ratio to drive your ventures toward greater success.
Specifications
General Information
Manufacturer
Acer, Inc
Manufacturer Part Number
MR.JH211.008
Manufacturer Website Address
http://us.acer.com
Brand Name
Acer
Product Series
P7
Product Model
P7505
Product Name

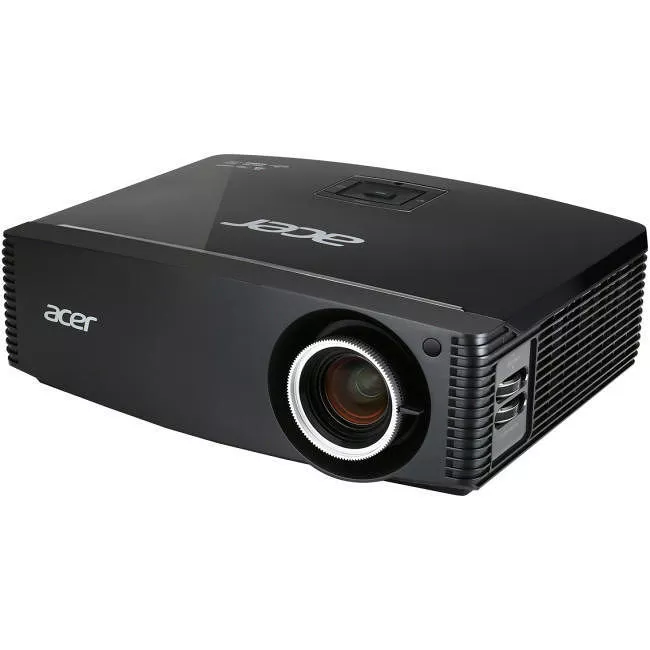

P7505 DLP Projector
Product Type
DLP Projector
Technical Information
Projection Method
3D Type
3D Ready
Platform Supported
3D Capability
DLP 3D
Video Compatibility
Computer Compatibility
Projection Lens
Lens Type
Minimum Focal Length
22.18 mm
Maximum Focal Length
33.27 mm
Minimum Diagonal Image Size
20"
Maximum Diagonal Image Size
25 ft
Lens Shift
-15%/+15% - Horizontal
Optical Zoom
1.5x
Minimum Lens Aperture
f/2.45
Maximum Lens Aperture
f/2.9
Minimum Projection Distance
39.37"
Maximum Projection Distance
32.81 ft
Lamp
Number of Lamps
1
Lamp Type
OSRAM
Lamp Power
370 W
Normal Mode Lamp Life
1500 Hour
Economy Mode Lamp Life
3500 Hour
ExtremeEco Mode Lamp Life
4500 Hour
Low Mode Brightness
4000 lm
Standard Mode Brightness
5000 lm
Color Supported
1.07 Billion Colors (30-bit)
Native Resolution
1920 x 1080
Graphic Mode
Full HD
Maximum Resolution
1920 x 1200
Native Aspect Ratio
16:9
Compatible Aspect Ratio
4:3
Throw Ratio
1.5 to 2.28 (60"@78.74")
Zoom Ratio
1:1.5
Contrast Ratio
10,000:1
Uniformity
85%
Vertical Keystone Correction
-40°/+40°
Minimum Vertical Sync
50 Hz
Maximum Vertical Sync
85 Hz
Minimum Horizontal Sync
30 kHz
Maximum Horizontal Sync
100 kHz
Digital Zoom
2x
Video
Video Signal Format
Video Signal Standard
HDTV
Audio
Number of Speakers
2
Speaker Output Power
3 W
Speaker Output Mode
Stereo
Multimedia Features
Multimedia Playback
Network & Communication
Ethernet Technology
Ethernet
Ethernet (LAN) Capability
DLNA
Interfaces/Ports
HDMI
Yes
Total Number of HDMI Ports
3
USB
Yes
Composite Video
Yes
Component Video
Yes
Network (RJ-45)
Yes
S-Video
Yes
VGA In
Yes
VGA Out
Yes
Audio Line In
Yes
Audio Line Out
Yes
Power Description
Input Voltage
Operating Power Consumption
460 W
Power Supply
100 V AC ~ 240 V AC
Physical Characteristics
Form Factor
Ceiling Mountable
Height
5.1"
Width
15.7"
Depth
12.2"
Weight (Approximate)
15.43 lb
Operating Temperature
32°F (0°C) to 104°F (40°C)
Operating Humidity
80%
Fan Noise
Miscellaneous
Package Contents
Optional Accessories
Warranty
Limited Warranty
1 Year
Parts Warranty/Labor
90 Day - Lamp
