ABOUT

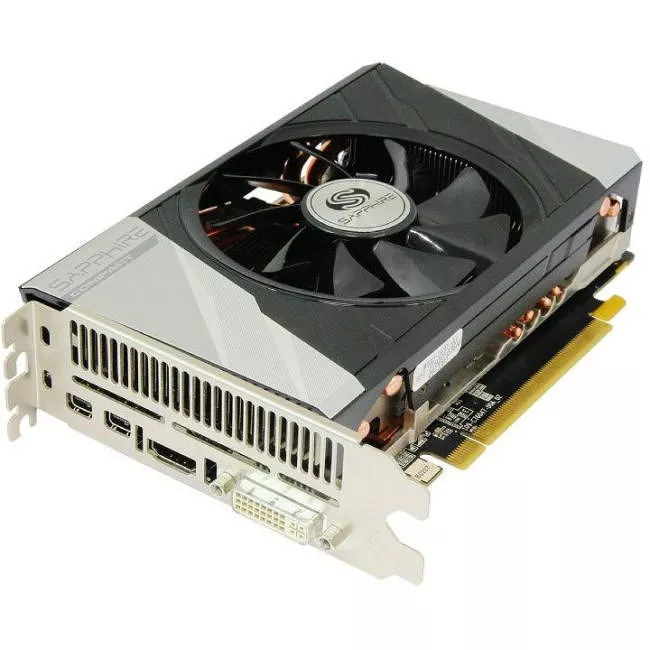

The SAPPHIRE ITX Compact R9 380 edition has been developed especially for small form factor PC systems. This model features a shorter PCB, measuring only 171mm long, and an efficient heatpipe cooler with a single dual-ball bearing fan. With its 2GB frame buffer it is no slouch despite its small size. Sharing the latest AMD GCN core with the NITRO and Dual-X models, the SAPPHIRE ITX Compact R9 380 supports DirectX 12, TrueAudio, AMD FreeSync and Ultra HD. With a SAPPHIRE Performance Index of 3 it is guaranteed to deliver a great gaming experience in high detail at 1080p and beyond.
See More
SPECIFICATIONS
General Information
Manufacturer
Sapphire, Inc
Manufacturer Part Number
11242-00-20G
Manufacturer Website Address
http://www.sapphiretech.com
Brand Name
Sapphire
Product Line
ITX Compact
Product Name
ITX Compact AMD Radeon R9 380 Graphic Card
Product Type
Graphic Card
Technical Information
API Supported
Number of Monitors Supported
4
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Line
Radeon
Chipset Series
R9 300
Chipset Model
R9 380
GPU Clock
980 MHz
Memory
Standard Memory
2 GB
Memory Technology
GDDR5
Bus Width
256 bit
Interfaces/Ports
HDMI
Yes
Number of HDMI Outputs
1
DVI
Yes
Total Number of DVI Outputs
1
Mini DisplayPort
Yes
Number of Mini DisplayPort Outputs
2
Physical Characteristics
Slot Space Required
Dual
Form Factor
Plug-in Card
Cooler Type
Fan Cooler
Height
1.5"
Width
4.6"
Length
6.7"
Miscellaneous
System Requirements
- 500 Watt Power Supply (Suggestion)
- 1 x 8-pin AUX Power Connector
- 2 x 8-pin AUX Power Connector is required for CrossFireX system
- CD-ROM or DVD-ROM drive for installing software
- PCI Express based PC is required with one X16 lane graphics slot available on the motherboard
Platform Supported
PC
