Highlights:
- Rack Height: 2U
- Processor Supported: 2x Intel Xeon Scalable Family
- Drive Bays: 8x 3.5" Hot-Swap (2x NVMe)
- Supports up to 4x Double-Wide cards

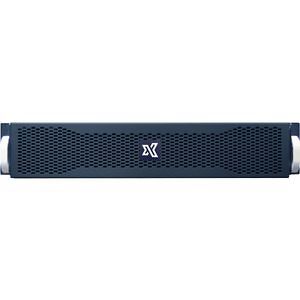

The TensorEX TS2-673917-SMD is a 2U rack mountable server supporting 2x Intel Xeon Scalable Family processors and a maximum of 2 TB DDR4 memory.
Schrödinger MD Compatible System
- Designed to meet the requirements for Molecular Dynamics GPU Computing or highly complex Free Energy Perturbation (FEP) calculations
- Optimized to meet or exceed the published performance numbers
- Preinstalled Desmond GPU computing solutions, designed in collaboration with Schrödinger
- Save time from installing, optimizing, and validating
- Fully customizable to meet your budget
- Supports Up to 4x NVIDIA Tesla GPUs
- 3 Year Warranty
NVIDIA Tesla GPU Options
| Model | Standard Memory | Memory Bandwidth (GB/s) | CUDA Cores | Tensor Cores | Single Precision (TFLOPS) | Double Precision (TFLOPS) | Power (W) | Explore | |
|---|---|---|---|---|---|---|---|---|---|
 | Tesla V100 32 GB | 32 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
| Tesla V100 16 GB | 16 GB HBM2 | 900 | 5120 | 640 | 14 | 7 | 250 | Specs |
 | Tesla T4 | 16 GB GDDR6 | 320 | 2560 | 320 | 8.1 | 0.24 | 75 | Specs |
 | Tesla P100 16 GB | 16 GB HBM2 | 732 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
| Tesla P100 12 GB | 12 GB HBM2 | 549 | 3584 | - | 9.3 | 4.7 | 250 | Specs |
 | Tesla P40 | 24 GB GDDR5 | 346 | 3840 | - | 12 | 0.37 | 250 | Specs |
Processor & Chipset
Number of Processors Supported
2
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Silver 41XX
- Gold 51XX
- Gold 61XX
- Platinum 81XX
- Bronze 32XX
- Silver 42XX
- Gold 52XX
- Gold 62XX
- Platinum 82XX
Thermal Design Power (TDP)
150 W
Memory
Maximum Memory
2 TB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2666/PC4-21300
Number of Total Memory Slots
16
Controllers
SATA3
- Via C621 chipset
- RAID 0, 1, 5, 10 (Intel RSTe for Linux/Windows)
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
1000BASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
- 8x PCI-E 3.0 x16 slots (4x at x16 link or 8x at x8 link)
- 1x PCI-E 3.0 x16 slots (Low-profile)
- 1x PCI-E 3.0 x8 slots (Low-profile)
Drive Bays
Hot-swap
- 8x 3.5" Hot-swap drive bays
M.2
- 1x M.2 SATA & NVMe (2260 / 2280)
- *Not supported if installing both NVMe & SATA M.2
Interfaces/Ports
Total Number of USB Ports
6
Number of USB 3.0 Ports
4 (2x front, 2x rear)
Number of USB 2.0 Ports
2 (front)
Number of NVMe Interfaces
2
LAN
- 2x RJ45 1000BASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Power Description
Number of Power Supplies
2
Maximum Power Supply Wattage
1600 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.46"
Width
17.32"
Depth
31.50"
