Highlights:
  • Rack Height: 2U
  • Processor Supported: 2x IBM POWER8 with NVLINK
  • Drive Bays: 2x 2.5" Hot-Swap
  • Supports up to 4x NVIDIA Tesla P100 SXM2 GPUs
Contact sales for pricing

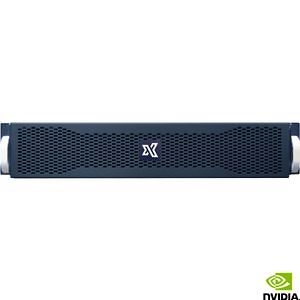

The TensorEX TS2-306052-DPN is a 2U rack mountable Deep Learning NVIDIA GPU server supporting 2x IBM POWER8 with NVLINK processors, a maximum of 1 TB DDR4 memory, and four Tesla P100 Pascal GPUs (SXM2), with up to 80GB/s NVLINK GPU-GPU interconnect.

GPUs have provided groundbreaking performance to accelerate deep learning research with thousands of computational cores and up to 100x application throughput when compared to CPUs alone. Exxact has developed the Deep Learning DevBox, featuring NVIDIA GPU technology coupled with state-of-the-art NVLINK GPU-GPU interconnect technology, and a full pre-installed suite of the leading deep learning software, for developers to get a jump-start on deep learning research with the best tools that money can buy.

Features:

  • Supports 2x IBM POWER8 with NVLINK processors
  • 4x Tesla P100 SXM2 (10.6 TFlops of single precision, 732 GB/s of memory bandwidth, and 16 GB of memory per board) GPUs
  • NVIDIA DIGITS software providing powerful design, training, and visualization of deep neural networks for image classification
  • Pre-installed standard Ubuntu 18.04 w/ Deep Learning software stack
  • Google TensorFlow software library
  • Automatic software update tool included
  • A turn-key server with up to 80GB/s NVLINK GPU-GPU interconnect

Deep Learning Software Stack


Ubuntu Deep Learning Software Stack

NVIDIA CUDA
cuDNN
theano
Torch
Keras
Docker
NCCL
Caffe
Bidmach
OpenCV
RAPIDS
Caffe2
Anaconda
TensorFlow
MXNet

Exxact Docker NGC Ready Deep Learning Stack

Includes configuration and testing for the following NGC Ready Docker containers:

NVIDIA CUDA
NVIDIA Digits
Caffe
PyTorch
TensorFlow
RAPIDS

Additional Docker Images:

Portainer

Optional Software

SINGA
Singularity
Microsoft Cognitive Toolkit
Deep Learning NVIDIA GPU Solutions

Processor & Chipset
Number of Processors Supported
2
Processor Socket
POWER8
Processor Type
POWER8
Processor Supported
POWER8 with NVLink
Thermal Design Power (TDP)
Up to 190W
GPU
4x NVIDIA Tesla P100 SXM2
Memory
Maximum Memory
1 TB
Memory Technology
DDR4 SDRAM
Memory Standard
DDR4-1600/PC4-12800
Number of Total Memory Slots
32
Controllers
SATA3
  • Integrated onboard
Display & Graphics
Graphics Controller Manufacturer
N/A
Graphics Controller Model
N/A
Network & Communication
Ethernet Technology
  • 10GBASE-T
I/O Expansions
PCI Express
  • 2x PCI-E 3.0 x16 slots
  • 3x PCI-E 3.0 x8 slots
Drive Bays
Hot-swap
2x 2.5" Hot-swap drive bays
Interfaces/Ports (per node)
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
2
LAN
  • 4x RJ45 10GBASE-T Ethernet LAN Ports
  • 1x RJ45 IPMI LAN Port
Onboard Video
1x VGA Connector
Serial/Header
1x COM port
Power Description
Number of Power Supplies
2
Redundant Power Supplies
Yes
Maximum Power Supply Wattage
2000 W
Certification
N/A
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
2U
Height
3.43"
Width
17.48"
Depth
N/A
