Highlights:
- Rack Height: 1U
- Processor Supported: 1x Intel Xeon Scalable family
- Drive Bays: 3x 3.5" Hot-Swap
- Supports up to 2x Double-Wide cards

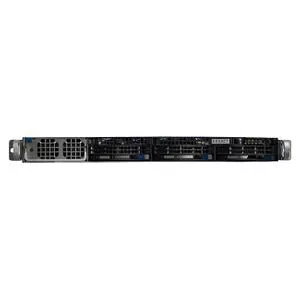

The TensorEX TS1-672510-ISS is a 1U rack mountable server supporting 1x Intel Xeon Scalable family processor and a maximum of 768 GB DDR4 memory.
Processor & Chipset
Number of Processors Supported
1
Processor Socket
LGA 3647
Processor Type
Xeon
Processor Supported
- Bronze 31XX
- Bronze 32XX
- Silver 41XX
- Silver 42XX
- Gold 51XX
- Gold 52XX
- Gold 61XX
- Gold 62XX
- Platinum 81XX
- Platinum 82XX
Thermal Design Power (TDP)
205 W
Chipset
C621
Memory
Maximum Memory
768 GB
Memory Technology
- DDR4 SDRAM
- DDR4 NVDIMM (Intel Optane DCPMM)
Memory Standard
DDR4-2933/PC4-23400
Number of Total Memory Slots
6
Controllers
SATA3
- Via C621 chipset
- RAID 0, 1, 5, 10
Display & Graphics
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Network & Communication
Ethernet Technology
10GBASE-T
Number of Network (RJ-45) Ports
2
I/O Expansions
PCI Express
- 2x PCI-E 3.0 x16 slots (Supports 2x double wide card)
- 1x PCI-E 3.0 x16 slot (Low-profile)
Drive Bays
Hot-swap
3x 3.5" Hot-swap drive bays
M.2
2x M.2 Mini PCIe support 2280
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2 (rear)
Number of SATA Interfaces
6
LAN
- 2x RJ45 10GBASE-T Ethernet LAN Ports
- 1x RJ45 Dedicated IPMI Port
Onboard Video
1x VGA Connector
Serial Port
1x COM Port header
DOM
2x DOM power connectors
Power Description
Number of Power Supplies
1
Maximum Power Supply Wattage
1400 W
Certification
80 Plus Platinum
Physical Characteristics
Color
Black
Form Factor
Rack-mountable
Rack Height
1U
Height
1.7"
Width
17.2"
Depth
28.2"
