MPN: TC-2U50PD8

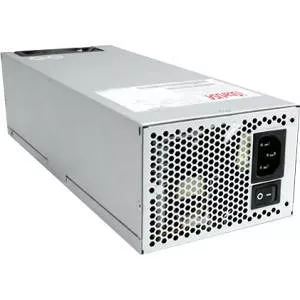

iStarUSA TC-2U50PD8 ATX12V & EPS12V Power Supply - 500 W 80 PLUS

Highlights

About

Specifications

iStarUSA 2U power supply series provide high performance in compact form factor. The TC-2U50PD8 supports server, compact PC, and space constrained application. Standard feature includes 80+ efficiency, triple circuits protection, and EPS 2U for industrial and high performance system requirement.

Specifications

General Information

Manufacturer

iStarUSA, Inc

Manufacturer Part Number

TC2U50PD8

Manufacturer Website Address

http://www.istarusa.com

Brand Name

iStarUSA

Product Model

TC-2U50PD8

Product Name

TC-2U50PD8 ATX12V & EPS12V Power Supply

Product Type

Power Supply

Technical Information

Specification Compliance

ATX12V/EPS12V

Efficiency

85%

Protection Type

Over Voltage

Over Current

Short Circuit

Reliability

MTBF

100000 Hour

Power Description

Number of +12V Rails

Input Voltage Type

Input Voltage

110 V AC

220 V AC

Input Voltage Range

90 V AC - 264 V AC

Output Voltage

3.3 V DC

5 V DC

12 V DC

-12 V DC

Output Voltage Detail

3.3 V DC @ 24 A

5 V DC @ 20 A

12 V DC @ 45 A

12 V DC @ 15 A

-12 V DC @ 500 mA

5 V DC @ 2.5 A

Input Current

10 A @ 110V

5 A @ 220V

Output Current

24 A

20 A

45 A

15 A

500 mA

2.50 A

Output Power

500 W

Interfaces/Ports

Receptacles

1 x 24-pin ATX Motherboard

1 x 4+4pin ATX12V Motherboard

1 x 8-pin EPS12V Motherboard

4 x 15-pin Serial ATA

1 x 4-pin SP4 Floppy Drive

4-pin LP4 Peripheral Device

Physical Characteristics

Form Factor

Rack-mountable

Height

2.8"

Width

3.9"

Depth

9.5"

Miscellaneous

Environmentally Friendly

Yes

Energy Efficiency Certification

80 Plus Standard

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
