MPN: IS-550R8P

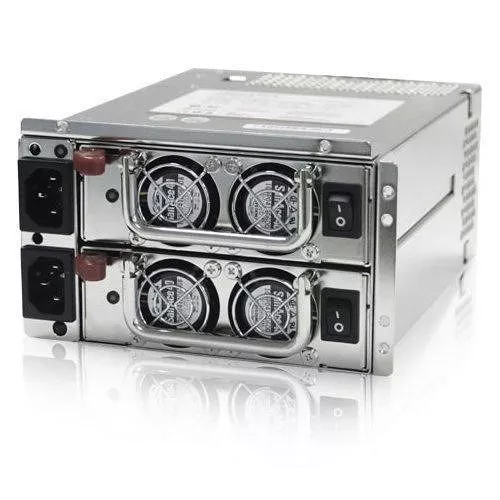

iStarUSA IS-550R8P 550W PS2 Mini Redundant Power Supply

Highlights

About

Specifications

iStarUSA Dual AC input Mini Redundant Power Supply IS-550R8P. It offers your server and workstation zero down time with full 550W power redundancy. Load sharing function provide ultimate precision power and safety protection for all electronic equipment.

Specifications

General Information

Manufacturer

iStarUSA, Inc

Manufacturer Part Number

IS550R8P

Manufacturer Website Address

http://www.istarusa.com

Brand Name

iStarUSA

Product Model

IS-550R8P

Product Name

IS-550R8P ATX12V & EPS12V Power Supply

Product Type

Power Supply

Technical Information

Specification Compliance

ATX12V/EPS12V

Efficiency

74%

Power Factor Correction (PFC)

Active

Protection Type

Over Voltage

Over Current

Short Circuit

Reliability

MTBF

100000 Hour

Power Description

Input Voltage

110 V AC

220 V AC

Input Voltage Range

90 V AC - 264 V AC

Output Voltage

3.3 V DC

5 V DC

12 V DC

-5 V DC

-12 V DC

Output Voltage Detail

3.3 V DC @ 24 A

5 V DC @ 30 A

12 V DC @ 41 A

-5 V DC @ 1 A

-12 V DC @ 500 mA

5 V DC @ 2 A

Output Current

24 A

30 A

41 A

1 A

500 mA

2 A

Output Power

550 W

Interfaces/Ports

Receptacles

1 x 24-pin ATX Motherboard

1 x 4-pin ATX12V Motherboard

1 x 8-pin EPS12V Motherboard

1 x 6-pin PCI-E

8 x 4-pin LP4 Peripheral Device

2 x 4-pin SP4 Floppy Drive

Physical Characteristics

Hot Swappable Power Supply

Yes

Height

3.3"

Width

5.9"

Depth

7.8"

Miscellaneous

Additional Information

PS2 Mini Redundant Power Supply
Power Failure Alarm & Signals
Automatic Thermal Control (reduce Fan Speed)

Compatibility

Server
Workstation

Environmentally Friendly

Yes

Environmental Compliance

Restriction of Hazardous Substances (RoHS)
