MPN: IS-350R2UP

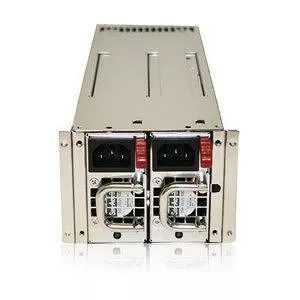

iStarUSA IS-350R2UP ATX12V & EPS12V Power Supply - 350W Rack-mountable

Highlights

About

Specifications

IS-350R2UP ATX12V & EPS12V Power Supply offers your server and workstation zero down time with full 350W power redundancy. Active PFC, temperature control fan, hot swappable power modules and load sharing function provide ultimate precision power and safety protection for all electronic equipment.

Specifications

General Information

Manufacturer

iStarUSA, Inc

Manufacturer Part Number

IS350R2UP

Manufacturer Website Address

http://www.istarusa.com

Brand Name

iStarUSA

Product Model

IS-350R2UP

Product Name

IS-350R2UP ATX12V & EPS12V Power Supply

Product Type

Power Supply

Technical Information

Specification Compliance

ATX12V/EPS12V

Efficiency

74%

Power Factor Correction (PFC)

Active

Number of Fans

Protection Type

Over Current

Over Power

Over Voltage

Short Circuit

Reliability

MTBF

100000 Hour

Power Description

Input Voltage

110 V AC

220 V AC

Input Voltage Range

100 V AC - 240 V AC

Output Voltage

3.3 V DC

5 V DC

12 V DC

-5 V DC

-12 V DC

Output Voltage Detail

3.3 V DC @ 20 A

5 V DC @ 25 A

12 V DC @ 24 A

-5 V DC @ 500 mA

-12 V DC @ 1 A

5 V DC @ 2 A

Output Current

20 A

25 A

24 A

500 mA

1 A

2 A

Output Power

350 W

Interfaces/Ports

Receptacles

1 x 24-pin ATX Motherboard

1 x 4-pin ATX12V Motherboard

1 x 8-pin EPS12V Motherboard

2 x Serial ATA

6 x 4-pin LP4 Peripheral Device

1 x 4-pin SP4 Floppy Drive

Physical Characteristics

Form Factor

Rack-mountable

Hot Swappable Power Supply

Yes

Height

3.3"

Width

Depth

11.4"

Miscellaneous

Additional Information

Rack: 2U
Automatic Fan Thermal Control
Redundant Power Supply
Power Failure Alarm & Signals
Industrial DIN-Connector for Reliability
Industrial Japanese Components 40 degrees temperature

Compatibility

Server
Workstation

Environmentally Friendly

Yes

Country of Origin

Taiwan

Warranty

Limited Warranty

5 Year
