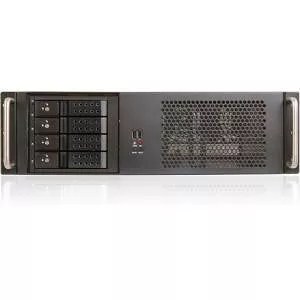

D-314-MATX is a reliable and stable 3U-high industrial computer chassis. The full size I/O supports all microATX motherboard with a Dual-core/ Quad-Core processors and the backplane supports 4 full-height add-on cards. This chassis is only 16" deep and has optional two 80mm cooling fans at front and two 60mm fans at rear for air ventilation. In addition, D-314-MATX supports a standard PS2 power supply to meet regular server system applications.
- Mfr Part Number: D-314-MATX
- Case Type: 3U Rackmount
- Front Bezel: Black
- Main Chassis: Black
- Front Bezel: SPCC 1.0mm
- Handle: Steel
- Main Chassis: SGCC 1.0mm
- M/B Type: ATX, MicroATX, Mini-ITX; 12.0 x 9.6 inch
- Drive Bays: 7
- External: 3x 5.25"
- Internal: 4x 3.5"
- Expansion Slots: 4 (full height & up to 165mm deep with hdds installed)
- Cooling System: 2x 80mm Fan Vents (Fans not included), 2x 60mm Fan Vents (Fans not included)
- Front I/O Panel: 2x USB 2.0 Ports
- Indicators: Power, HDD
- Switches: Power, Reset
- Power Supply: None, Supports ATX PS2 Power Supply
- Dimensions (WxDxH): 19.00 x 15.35 x 5.24 inch / 482.6 x 389.9 x 133.1 mm
- RoHS Compliant
