ZTC-IONITX-E-E-00
MPN: IONITX-E-E

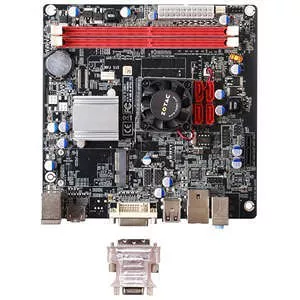

ZOTAC IONITX-E-E Desktop Motherboard - NVIDIA Chipset - Socket 437 - Mini ITX

Highlights
General Information
Manufacturer
ZOTAC International
Manufacturer Part Number
IONITX-E-E
Manufacturer Website Address
http://www.zotac.com
Brand Name
Zotac
Product Model
IONITX-E-E
Product Name
IONITX-E-E Desktop Board
Product Type
Desktop Motherboard
Processor & Chipset
Chipset Manufacturer
NVIDIA
Total Processor Supported
1
Processor Technology
Hyper-Threading Technology
Processor Socket
Socket 437
Processor Supported
Atom
Front Side Bus
533 MHz
64-bit Processing
Yes
Memory
Number of Memory Slots
2
Maximum Memory Supported
4 GB
Memory Standard
  • DDR2-800/PC2-6400
  • DDR2-667/PC2-5300
    • Memory Technology
    DDR2 SDRAM
    Memory Speed Supported
  • 800 MHz
  • 667 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 0+1
    • Video
    Onboard Video
    On-board Video Chipset
    Audio
    Audio Channels
    7.1
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    2
    Total Number of PCI Express Slots
    1
    Number of PCI Express x1 Slots
    1
    Number of Mini PCI Express Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    6
    Number of USB 2.0 Ports
    6
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    VGA
    Yes
    HDMI
    Yes
    Number of HDMI Outputs
    1
    DVI
    Yes
    Number of DVI Outputs
    1
    Network (RJ-45)
    Yes
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    4
    Total Number of Onboard USB Ports
    4
    Onboard LEDs Header
    Yes
    Physical Characteristics
    Form Factor
    Mini ITX
    Width
    6.7"
    Depth
    6.7"

    Specifications
