Highlights:
  • Storage Capacity: 120 GB
  • Drive Interface: mini-SATA
  • Maximum Read Transfer Rate: 540 MB/s
  • Maximum Write Transfer Rate: 425 MB/s
Contact sales for pricing

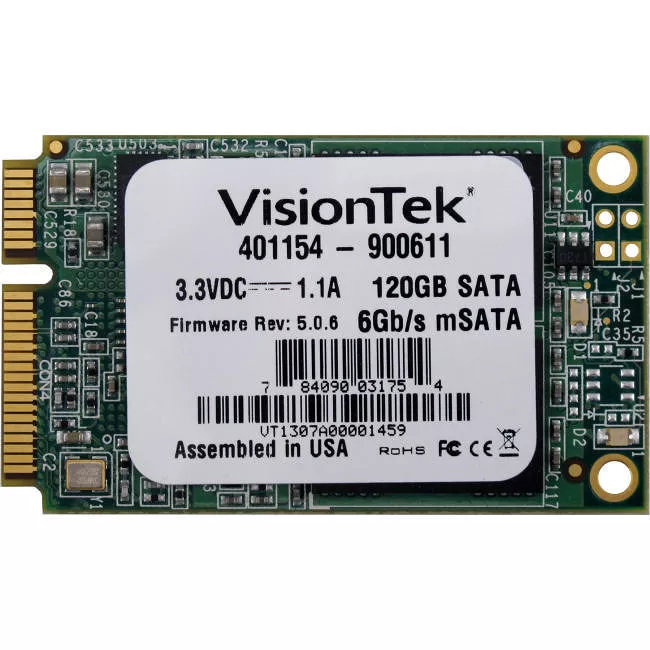

The VisionTek mSATA SSD Module combines enterprise class performance and reliability with low power operation to make the ideal embedded SATA III storage solution for use as a boot drive or internal high speed storage!

Providing an industry-leading bandwidth of more than 550MB/sec transfers, the VisionTek mSATA SSD module can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 60,000 IOPS while providing advanced power management for low cost of ownership via reduced consumption or extended battery life.

The VisionTek mSATA SSD module uses SandForice 22xxx processing, featuring robust ECC algorithm and redundant storage technology protects the data. The SandForce enabled efficient bad block management and reduced write amplification further bolster endurance of the drive. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the embedded storage industry.

General Information
Manufacturer
VisionTek Products, LLC
Manufacturer Part Number
900611
Manufacturer Website Address
http://www.visiontek.com
Brand Name
VisionTek
Product Name
Solid State Drive
Product Type
Solid State Drive
Technical Information
Storage Capacity
120 GB
Features
  • S.M.A.R.T
  • Low Power Consumption
  • Drive Performance
    Maximum External Data Transfer Rate
    6144 MB/s (48 Gbit/s)
    Maximum Read Transfer Rate
    540 MB/s
    Maximum Write Transfer Rate
    425 MB/s
    Interfaces/Ports
    Drive Interface
    mini-SATA
    Drive Interface Standard
    SATA/600
    Physical Characteristics
    Drive Type
    Internal
    Warranty
    Limited Warranty
    2 Year
