ABOUT
The SU3000RTXL2U SmartOnline® 120V 3kVA 2.7kW On-Line Double-Conversion UPS provides the highest level of battery backup and AC power protection for critical server, network and telecom equipment. It delivers perfectly regulated sine wave output with +/-2% voltage regulation in online and battery modes, 0.9 power factor and zero transfer time to battery.
Operating with a high 95% efficiency in economy mode, the ENERGY STAR-certified SU3000RTXL2U can save you money by meeting strict EPA guidelines. Featuring six NEMA 5-15/20R outlets in two switchable breakered load banks, as well as one non-breakered L5-30R outlet, the SU3000RTXL2U has an internal battery that provides 13.8 minutes of support at half load and 4.8 minutes at full load. Adding optional external battery packs, such as Tripp Lite's BP72V15-2U (sold separately), provides extended runtime.
USB and DB9 ports combine with Tripp Lite's free downloadable PowerAlert® software to offer comprehensive network power monitoring and control. This UPS system also accepts an optional WEBCARDLX network interface (sold separately) that enables Java-free remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH.

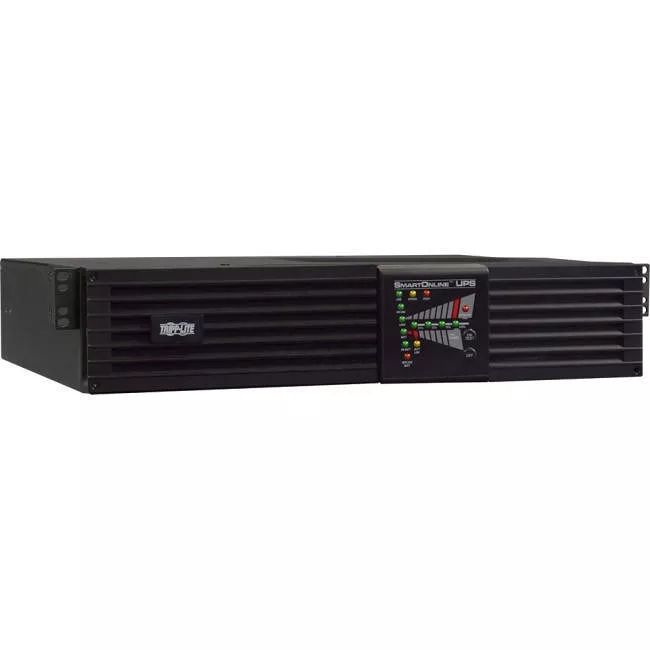

The front LED panel indicates line power, online mode, economy/bypass mode, on-battery, overload, battery condition and fault status information at a glance. It rotates for easy viewing in either rack or tower configuration.
Operating with a high 95% efficiency in economy mode, the ENERGY STAR-certified SU3000RTXL2U can save you money by meeting strict EPA guidelines. Featuring six NEMA 5-15/20R outlets in two switchable breakered load banks, as well as one non-breakered L5-30R outlet, the SU3000RTXL2U has an internal battery that provides 13.8 minutes of support at half load and 4.8 minutes at full load. Adding optional external battery packs, such as Tripp Lite's BP72V15-2U (sold separately), provides extended runtime.
USB and DB9 ports combine with Tripp Lite's free downloadable PowerAlert® software to offer comprehensive network power monitoring and control. This UPS system also accepts an optional WEBCARDLX network interface (sold separately) that enables Java-free remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH.
The front LED panel indicates line power, online mode, economy/bypass mode, on-battery, overload, battery condition and fault status information at a glance. It rotates for easy viewing in either rack or tower configuration.
See More
SPECIFICATIONS
General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
SU3000RTXL2U
Manufacturer Website Address
http://www.tripplite.com
Brand Name
Tripp Lite
Product Line
SmartOnline
Product Model
SU3000RTXL2U
Product Name
SmartOnline SU3000RTXL2U 3000VA Tower/Rack Mountable UPS
Product Type
Dual Conversion Online UPS
Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacles
Bypass Switch
Automatic
Emergency Power OFF
Yes
Power Description
Load Capacity
3000 VA/2700 W
Input Voltage
120 V AC
Output Voltage
Input Current
24 A
Management
Network Management
SNMP Manageable
Interfaces/Ports
Serial Port
Yes
USB
Yes
Battery Information
Backup/Run Time (Full Load)
4.80 Minute
Backup/Run Time (Half Load)
13.80 Minute
Hot Swappable
Yes
Physical Characteristics
Height
3.5"
Width
17.3"
Depth
26"
Rack Height
2U
Form Factor
Rack/Tower
Weight (Approximate)
68.80 lb
Miscellaneous
Package Contents
- SmartOnline SU3000RTXL2U 3000VA Tower/Rack Mountable UPS
- 4 Post Rack Mount Installation Brackets
- PowerAlert Software CD and Cabling
- Owner's Manual with Warranty Information
Additional Information
Front Panel LEDs:
- Line Power (Green)
- Online (Green)
- Bypass (Yellow)
- On Battery (Green)
- Overload (Red)
- Battery Low (Yellow)
Alarms:
- Notification of Backup Operation
- Low Battery Warning
- Overload
- UPS Fault
- Input Voltage Out of Frequency
- High Input Voltage
Certifications & Standards
- UL1778
- CSA
- NOM
- FCC Part 15 Class A
Software Included
PowerAlert Software
Warranty
Limited Warranty
2 Year
