ABOUT
Tripp Lite SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 96% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB port, DB9 serial port and pre-installed WEBCARDLX network management interface card. The Java-free HTML5-based WEBCARDLX interface enables full remote access for site power and UPS status monitoring, configuration, control and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. HID-compliant USB port enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. PowerAlert UPS monitoring software is available via free download. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.
See More
SPECIFICATIONS
General Information
Manufacturer
Tripp Lite
Manufacturer Part Number
SMART3000RMXLN
Manufacturer Website Address
http://www.tripplite.com
Brand Name
Tripp Lite
Product Series
SmartPro
Product Model
SMART3000RMXLN
Product Name

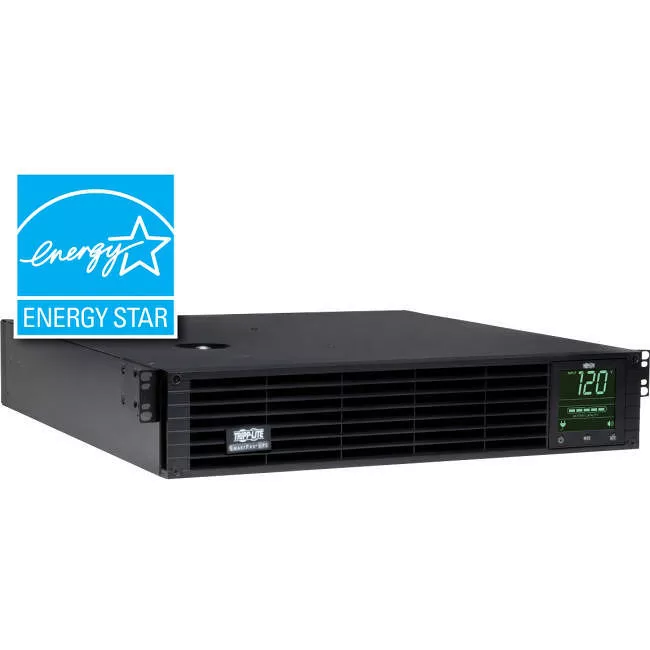

SMART3000RMXLN UPS System with Pre-installed SNMPWEBCARD
Product Type
Line-interactive UPS
Technical Information
Plug/Connector Type
NEMA L5-30P
Receptacles
Emergency Power OFF
Yes
Transfer Time
5 ms
Power Description
Load Capacity
3000 VA/2880 W
Input Voltage
110 V AC
Output Voltage
120 V AC
Management
Network Management
SNMP Manageable
Interfaces/Ports
Serial Port
Yes
USB
Yes
Battery Information
Backup/Run Time (Full Load)
3 Minute
Backup/Run Time (Half Load)
10 Minute
Typical Battery Recharge Time
5 Hour
Hot Swappable
Yes
Physical Characteristics
Height
3.5"
Width
17.5"
Depth
19"
Rack Height
2U
Form Factor
Rack/Tower
Weight (Approximate)
72.80 lb
Miscellaneous
Package Contents
- SMART3000RMXLN UPS System with Pre-installed SNMPWEBCARD
- PowerAlert Software CD
- USB Cable
- Serial Cable
- EPO Cable
- 4 Post Installation Kit
- Instruction Manual
Certifications & Standards
- UL1778
- CSA
- NOM
- FCC Part 15 Category B (EMI)
Software Included
PowerAlert Software
Energy Star
Yes
Environmentally Friendly
Yes
Environmental Certification
ENERGY STAR
Warranty
Limited Warranty
2 Year
