Trenton TVC2404 Video Wall Controller

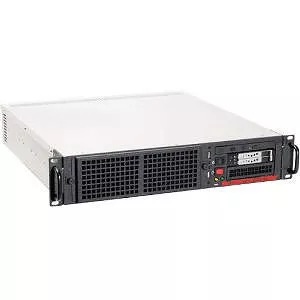

The TVC2404 Rackmount Video Wall Controller

The TVC2404 features a Trenton Systems BPC8219 PCI Express backplane with four PCIe card slots and a choice of single board computer such as a single processor TSB7053 or JXTS6966 or the dual processor JXT6966 or BXT7059.

This video wall controller supports storage options for up to two front access / hot swap storage drives, and a redundant system power supply to deliver reliable display wall performance.

Key Features

Key features of the TVC2404 rackmount video wall controller include:

• PCI Express support for up to three x16 PCIe video wall controller cards
• Validated with up to three Matrox Mura MPX boards using the TSB7053 SBC option
• Ideal controller form factor for for compact and mid-size video display walls
• 2U rackmount video wall controller with an 18" depth and redundant power supply
• Backplane features multiple x16 PCI Express electrical interfaces
• Features flexible data storage options
• Accommodates up to two hot swap, front access 2.5" HDD/SDD SATA storage drives
• TSB7053 or JXTS6966 PICMG 1.3 SBC options with one long-life Intel® processor
• BXT7059 or JXT6966 PICMG 1.3 SBC option with two long-life Intel® Xeon® processors
• Front panel USB ports and LED status indicators

A long life cycle single board computer and backplane for added system configuration stability, along with a 5-year factory warranty on all Trenton boards is built into this video wall controller, making it an ideal platform for video processing, command and control, and process control applications.
