MPN: CFETF1014-205

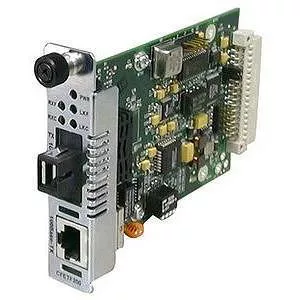

Transition Networks CFETF1014-205 Slide-In-Module Media Converter

Highlights

About

Specifications

This Transition Networks full-featured 100BASE-TX to 100BASE-FX Media Converter, cost-effective integration of twisted pair and fiber optics in Fast Ethernet networks is easier than ever before.

Specifications

General Information

Manufacturer

Transition Networks, Inc

Manufacturer Part Number

CFETF1014-205

Manufacturer Website Address

http://www.transition.com

Brand Name

Transition Networks

Product Line

Point System

Product Model

CFETF1014-205

Product Name

Slide-In-Module Media Converter

Product Type

Transceiver/Media Converter

Interfaces/Ports

Total Number of Ports

Network (RJ-45)

Yes

Number of Network (RJ-45) Ports

Number of SC Ports

SC Port Type

Duplex

Media & Performance

Media Type Supported

Twisted Pair

Optical Fiber

Fiber Mode Supported

Single-mode

Maximum Distance Supported

20 km

Network & Communication

Ethernet Technology

Fast Ethernet

Network Technology

100Base-TX

100Base-FX

Power Description

Power Consumption

3.40 W

Physical Characteristics

Form Factor

Internal

Height

3.4"

Width

3.4"

Depth

Miscellaneous

Additional Information

This converter will also automatically re-establish link when connected to two 10/100 auto-negotiating switches if link is lost. With other manufacturers' converters the user must intervene to re-establish link.

Report converter status to chassis management software:

TP Link status
Fiber Link status
Hardware switch settings
Fault
TP cable length

Write operation include:

Power device on/off
Full or half-duplex
Pause enable/disable
FEF enable/disable
AutoCross enable/disable

Certifications & Standards

FCC & CISPR Class A
FCC & CISPR Class B

Compliance:

UL Listed
C-UL Listed (Canada)
CISPR/EN55022 Class A & B
FCC Class A & B
CE Mark

IEEE:

IEEE 802.3u

Warranty

Limited Warranty

Lifetime
