TYN-S8236GM3NR-IL-00
MPN: S8236GM3NR-IL

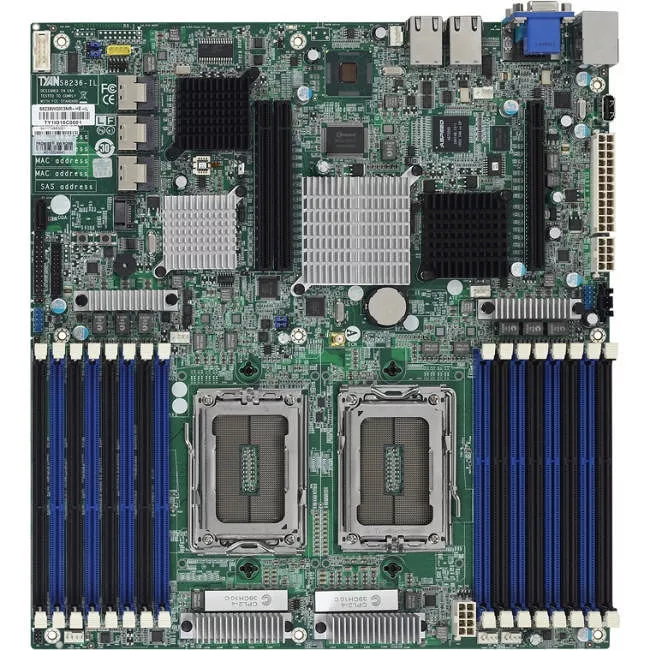

TYAN S8236GM3NR-IL Server Motherboard - AMD SR5690 Chipset - Socket G34 LGA-1944 - SSI EEB

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8236GM3NR-IL
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S8236GM3NR-IL
Product Name
S8236GM3NR-IL Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
SR5690
Total Processor Supported
2
Processor Technology
HyperTransport 3.0 Technology
Processor Socket
Socket G34 LGA-1944
Processor Supported
  • Opteron Hexadeca-core
  • Opteron Dodeca-core
  • Opteron Octa-core
  • Opteron
    • HyperTransport Speed (GT/s)
    6.4
    64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    16
    Memory Form Factor
  • RDIMM
  • UDIMM
    • Maximum Memory Supported
    256 GB
    Memory Standard
  • DDR3-1866/PC3-15000
  • DDR3-1600/PC3-12800
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1866 MHz
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2050
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    2
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 2.0 Ports
    2
    Serial Port
    Yes
    Audio Line In
    No
    Audio Line Out
    No
    Microphone Port
    No
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    3
    Onboard Interfaces
    Number of SATA Interfaces
    2
    Total Number of Onboard USB Ports
    4
    Number of Onboard USB 2.0 Ports
    4
    Onboard Serial Header
    Yes
    Power Description
    Power Supply Supported
    EPS12V
    Physical Characteristics
    Form Factor
    SSI EEB
    Width
    13"
    Depth
    12"
    Miscellaneous
    Package Contents
    • S8236GM3NR-IL Server Motherboard
    • 1 x User's Manual
    • 1 x Quick Ref. Guide
    • 1 x TYAN installation CD
    • 1 x I/O Shield
    • 2 x SATA Signal Cables
    Certifications & Standards
    • FCC Class A
    • CE
    Environmentally Friendly
    Yes
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
