TYN-S8230GM4NR-00
MPN: S8230GM4NR

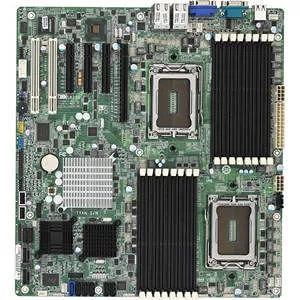

TYAN S8230GM4NR Server Motherboard - AMD SR5690 Chipset - Socket G34 LGA-1944 - Extended ATX

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8230GM4NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Series
S8230
Product Model
S8230GM4NR
Product Name
S8230 Series S8230GM4NR Server Board
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
SR5690
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket G34 LGA-1944
Processor Supported
  • Opteron Dodeca-core
  • Opteron Octa-core
    • QuickPath Interconnect
    6.40 GT/s
    64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    16
    Maximum Memory Supported
    128 GB
    Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2050
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    6
    Number of PCI Slots
    2
    Total Number of PCI Express Slots
    4
    Number of PCI Express x8 Slots
    3
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 2.0 Ports
    2
    Serial Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    2
    Onboard LEDs Header
    Yes
    Physical Characteristics
    Form Factor
    Extended ATX
    Width
    12"
    Depth
    13"
    Miscellaneous
    Package Contents
    • S8230 Series S8230GM4NR Server Board
    • 1 x User Manual
    • 1 x Quick Ref. Guide
    • 1 x Installation CD
    • 1 x I/O Shield
    • 6 x SATA Signal Cables
    Environmentally Friendly
    Yes
