TYN-S8226WGM3NR-00
MPN: S8226WGM3NR

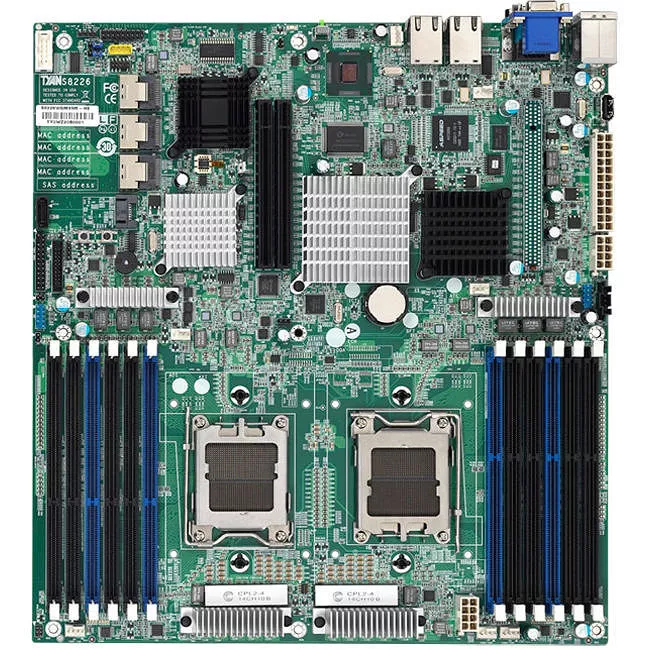

TYAN S8226WGM3NR Server Motherboard - Socket C32 LGA-1207 - AMD SR5690

Highlights
AMD OpteronTM 4100/4200 series

1U/2U-optimized dual-socket serverplatform for enterprise & IPDC applications

  • Dual C32 sockets support up to (2) AMD OpteronTM 4100/4200 series processors (Lisbon/Valencia)
  • Support (2) HyperTransportTM 3.0 link, max. bandwidth up to
    25.6 GB/s @ 6.4GT/s per link
  • AMD SR5690 + SR5650 + SP5100 (S8226WGM3NR-HE)
  • AMD SR5690 + SP5100 (S8226WGM3NR/ S8226GM3NR)
  • (12) 240-pin DDR3 DIMM slots support up to 192GB R-DDR3
    1333/1066/800MHz w/ ECC memory
  • (2) PCI-E Gen.2 x16 slots (S8226GM3NR/ S8226WGM3NR)
  • (3) PCI-E Gen.2 x16 slots (S8226WGM3NR-HE)
  • (6) SATA-II ports via (1) Mini-SAS & (2) SATA connectors w/
    RAID 0, 1, 10, 5 support
  • (8) SAS 6G ports via (2) Mini-SAS connectors w/ RAID 0, 1, 1E,
    10 support (S8226WGM3NR-HE/ S8226GM3NR)
  • (3) GbE LAN
  • Onboard BMC w/ IPMI and iKVM support
  • EATX (12 x 13) form factor
