MPN: S8225WAGM4NRF

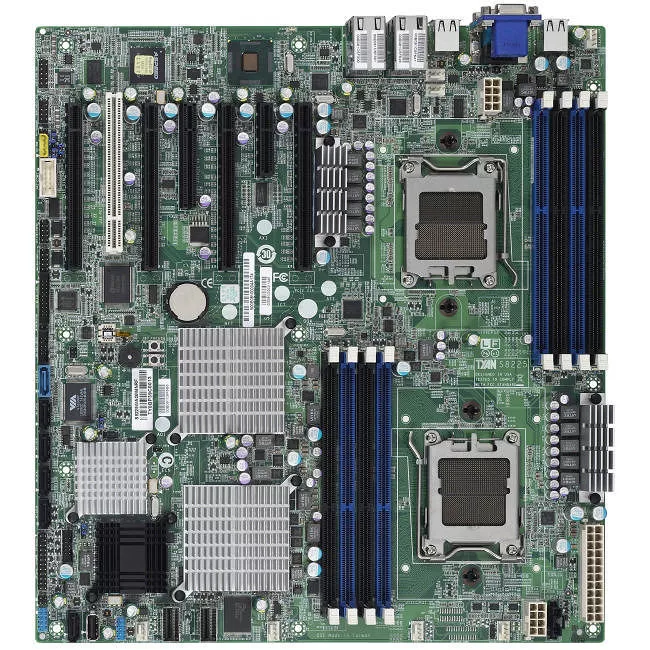

TYAN S8225WAGM4NRF S8225 Server Motherboard - AMD SR5690 Chipset - Socket C32 LGA-1207 - Extended ATX
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8225WAGM4NRF
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S8225
Product Name
S8225 Server Motherboards
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
SR5690
Total Processor Supported
2
Processor Technology
HyperTransport Technology
Processor Socket
Socket C32 LGA-1207
Processor Supported
Memory
Number of Memory Slots
8
Maximum Memory Supported
64 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2050
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC262
Audio Channels
3.1
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
PCI Express Standard
PCI Express 2.0
Total Number of PCI Express Slots
6
Number of PCI Express x4 Slots
1
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
5
Number of USB 2.0 Ports
5
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Onboard Interfaces
Number of SATA Interfaces
6
Number of SAS Interfaces
2
Total Number of Onboard USB Ports
4
Number of Onboard USB 2.0 Ports
4
Total Number of Onboard FireWire/i.LINK Ports
2
Onboard LEDs Header
Yes
Onboard Audio Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
12"
Depth
13"
Miscellaneous
Package Contents
- S8225 Server Motherboards
- 1 x User's Manual
- 1 x TYAN Installation CD
- 1 x I/O Shield
- 6 x SATA Signal Cables
- 2 x Mini-SAS Cables
Environmentally Friendly
Yes
