TYN-S8036GM2NE-00
MPN: S8036GM2NE

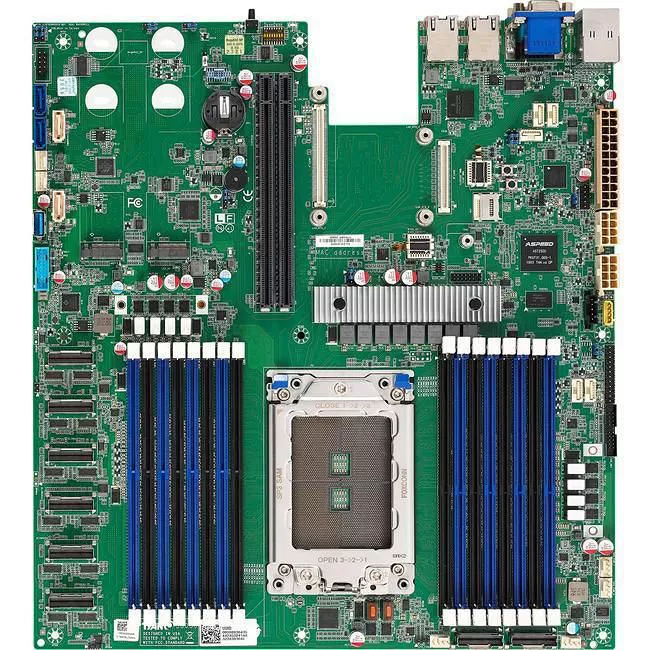

TYAN S8036GM2NE Tomcat SX S8036 Server Motherboard - Socket SP3 - SOC - AST2500

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8036GM2NE
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Tomcat SX
Product Model
S8036
Product Name
Tomcat SX S8036 Server Motherboard
Packaged Quantity
1
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Total Processor Supported
1
Processor Socket
Socket SP3
Processor Supported
EPYC
Memory
Number of Memory Slots
16
Memory Form Factor
  • RDIMM
  • DIMM
  • LRDIMM
    • Maximum Memory Supported
    4 TB
    Memory Technology
    DDR4 SDRAM
    Memory Speed Supported
    3200 MHz
    I/O Controller
    Controller Type
    Serial ATA/600
    RAID Supported
    No
    Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Model
    AST2500
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    2
    Total Number of PCI Express Slots
    2
    Number of PCI Express x24 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 3.1 Ports
    2
    VGA
    Yes
    Number of Network (RJ-45) Ports
    3
    Onboard Interfaces
    Number of SATA Interfaces
    20
    Number of M.2 Interfaces
    2
    Total Number of Onboard USB Ports
    3
    Number of Onboard USB 3.1 Ports
    3
    Number of NVMe Ports
    12
    Physical Characteristics
    Form Factor
    Extended ATX
    Width
    12"
    Depth
    13"
    Miscellaneous
    Package Contents
    • Tomcat SX S8036 Server Motherboard
    • 1 x Quick Installation Guide
    • 1 x I/O Shield
    • 2 x SATA Signal Cables
    Country of Origin
    Taiwan
    Environmentally Friendly
    Yes
    Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
