TYN-S8010GM2NR-00
MPN: S8010GM2NR

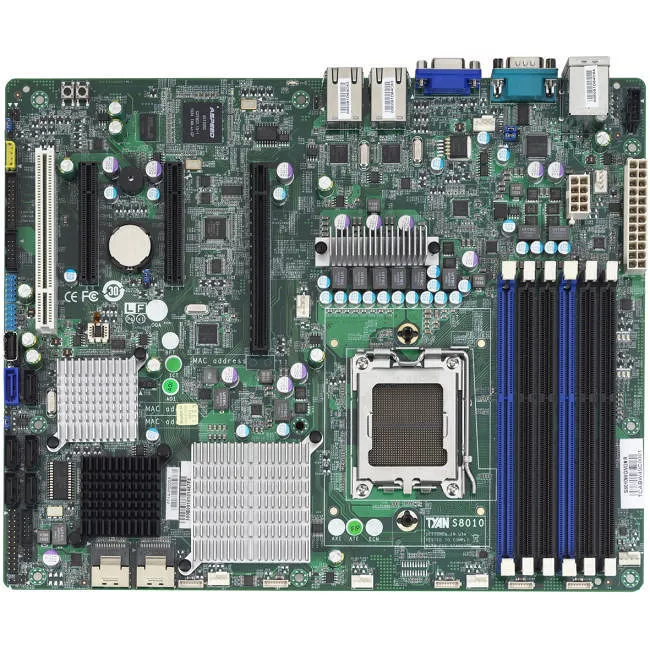

TYAN S8010GM2NR Server Motherboard - AMD SR5670 Chipset - Socket C32 LGA-1207 - ATX

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8010GM2NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Series
S8010
Product Model
S8010GM2NR
Product Name
S8010 S8010GM2NR Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
SR5670
Total Processor Supported
1
Processor Technology
HyperTransport 3.0 Technology
Processor Socket
Socket C32 LGA-1207
Processor Supported
Opteron
HyperTransport Speed (GT/s)
5.2
64-bit Processing
Yes
Memory
Number of Memory Slots
6
Memory Form Factor
  • DIMM
  • RIMM
  • UDIMM
    • Maximum Memory Supported
    64 GB
    Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2050
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    4
    Number of PCI Slots
    1
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    3
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    2
    Number of USB 2.0 Ports
    2
    Serial Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    4
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    5
    Number of Onboard USB 2.0 Ports
    5
    Onboard LEDs Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • S8010 S8010GM2NR Server Motherboard
    • 1 x User's Manual / (1) Quick Ref. Guide
    • 1 x Tyan Installation Cd
    • 1 x I/O Shield
    • 1 x Sata Signal Cables
    Certifications & Standards
    • ACPI 2.0
    • CE
    • FCC
    Environmentally Friendly
    Yes
    Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
