TYN-S8005GM2NR-LE-B-00
MPN: S8005GM2NR-LE-B

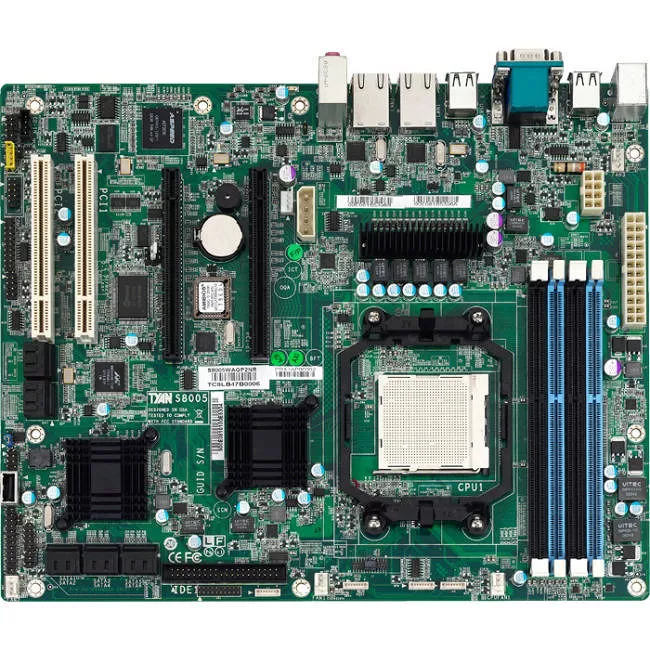

TYAN S8005GM2NR-LE-B S8005-LE Server Motherboard - AMD SR5650 Chipset - Socket AM3 PGA-941 - Bulk

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8005GM2NR-LE-B
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S8005-LE
Product Name
S8005-LE Server Motherboard
Packaged Quantity
1
Package Type
Bulk
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
SR5650
Total Processor Supported
1
Processor Technology
HyperTransport 3.0 Technology
Processor Socket
Socket AM3 PGA-941
Processor Supported
Opteron
HyperTransport Speed (GT/s)
4.4
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Memory Form Factor
  • DIMM
  • UDIMM
    • Maximum Memory Supported
    16 GB
    Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
  • Serial ATA/300
  • Serial Attached SCSI (SAS)
    • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 1+0
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2050
    Graphics Memory Technology
    DDR3 SDRAM
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC262
    Audio Channels
    2.0
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    3
    Number of PCI Slots
    2
    PCI Express Standard
    PCI Express 2.0
    Total Number of PCI Express Slots
    1
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Serial Port
    Yes
    Audio Line In
    Yes
    Audio Line Out
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    2
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Number of SAS Interfaces
    4
    Total Number of Onboard USB Ports
    3
    Number of Onboard USB 2.0 Ports
    3
    Onboard Serial Header
    Yes
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Power Description
    Power Supply Supported
    EPS12V
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
    Miscellaneous
    Package Contents
    • S8005-LE Server Motherboard
    • 1 x User's Manual
    • 1 x Quick Ref. Guide
    • 1 x Installation CD
    • 1 x I/O Shield
    • 6 x SATA Signal Cables
    • 1 x SAS Cable
    • 1 x USB Bracket Cable
    Compatibility
    Tyan GT14-B8005 1U Barebone
    Certifications & Standards
    • ACPI 2.0
    • FCC Class B
    • CE
    Environmentally Friendly
    Yes
    Environmental Certification
  • RoHS-6
  • China RoHS
  • WEEE
    • Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
