TYN-S8005AGM2NR-00
MPN: S8005AGM2NR

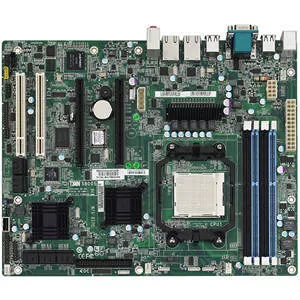

TYAN S8005AGM2NR Server Motherboard - AMD SR5670 Chipset - Socket AM3 PGA-941 - ATX

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S8005AGM2NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Series
S8005
Product Model
S8005AGM2NR
Product Name
S8005 Series S8005AGM2NR Server Board
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
AMD
Chipset Model
SR5670
Total Processor Supported
1
Processor Technology
HyperTransport Technology
Processor Socket
Socket AM3 PGA-941
Processor Supported
Opteron Quad-Core
QuickPath Interconnect
4.40 GT/s
64-bit Processing
Yes
Memory
Number of Memory Slots
4
Maximum Memory Supported
16 GB
Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2050
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC262
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    5
    Number of PCI Slots
    2
    Total Number of PCI Express Slots
    2
    Number of PCI Express x8 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Serial Port
    Yes
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    PS/2 Port
    Yes
    Number of PS/2 Ports
    1
    Onboard Interfaces
    Number of SATA Interfaces
    3
    Total Number of Onboard USB Ports
    2
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Physical Characteristics
    Form Factor
    ATX
    Width
    12"
    Depth
    9.6"
