Intel® C602Chipset
High-end dual-socket server platform forHPC and GPU applicationswith (3) GbE and iKVM support
High-end dual-socket server platform forHPC and GPU applicationswith (3) GbE and iKVM support
- Dual LGA2011 socket supports (2) E5-2600 series CPU
- Intel® C602 PCH and INTEL SAS ROM key design
- (4+4) 240-pin DDR3 DIMM slots DDR3/DDR3L 800/1066/1333/1600 RDIMM, 800/1066/1333 UDIMM/LRDIMM support DDR3 Unbuffered and Register ECC
- Support up to 128GB RDIMM/64GB URDIMM memory
- (4) PCI-E Gen3 x16 slots
- (1) PCI-E Gen2 x8 slots
- (4) SATA-II connectors w/ RAID 0, 1, 10, 5 support
- (2) SATA-III connectors
- (2) 10GbE Base-T Capability (S7055AGM3NR-2T)
See More
SPECIFICATIONS
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S7055WAGM3NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S7055
Product Name

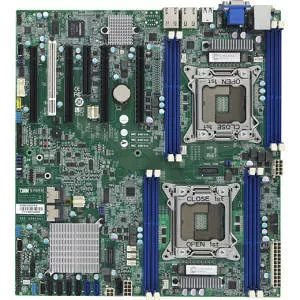

S7055 Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
QuickPath Interconnect
8 GT/s
64-bit Processing
Yes
Memory
Number of Memory Slots
8
Memory Form Factor
Maximum Memory
128 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2300
Audio
Sound Controller Manufacturer
Realtek
Sound Controller Model
ALC262
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
Number of PCI Slots
1
PCI Express Standard
Total Number of PCI Express Slots
5
Number of PCI Express x8 Slots
1
Number of PCI Express x16 Slots
4
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Serial Port
Yes
Audio Line In
Yes
Audio Line Out
Yes
Microphone Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
3
Onboard Interfaces
Number of SATA Interfaces
6
Number of SAS Interfaces
2
Total Number of Onboard USB Ports
7
Number of Onboard USB 2.0 Ports
7
Onboard Serial Header
Yes
Physical Characteristics
Form Factor
SSI EEB
Width
12"
Depth
13"
Miscellaneous
Package Contents
- S7055 Server Motherboard
- 1 X Quick Installation Guide
- 1 X TYAN Installation CD
- 1 X I/O Shield
- 6 X SATA Signal Cables
Compatibility
- Chassis 4U Barebone FT48-B7055
Certifications & Standards
- ACPI 2.0
- CE
- FCC
Environmentally Friendly
Yes
Environmental Certification
