TYAN system boards provide the ultimate Internet platform for today's desktop PCs, workstations and servers. From cost-effective all-in-one value solutions to multi-processor server products with integrated networking and storage connectivity, TYAN system boards offer cutting-edge performance, maximum expandability and high reliability.
See More
SPECIFICATIONS
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S7053GM2NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S7053
Product Name

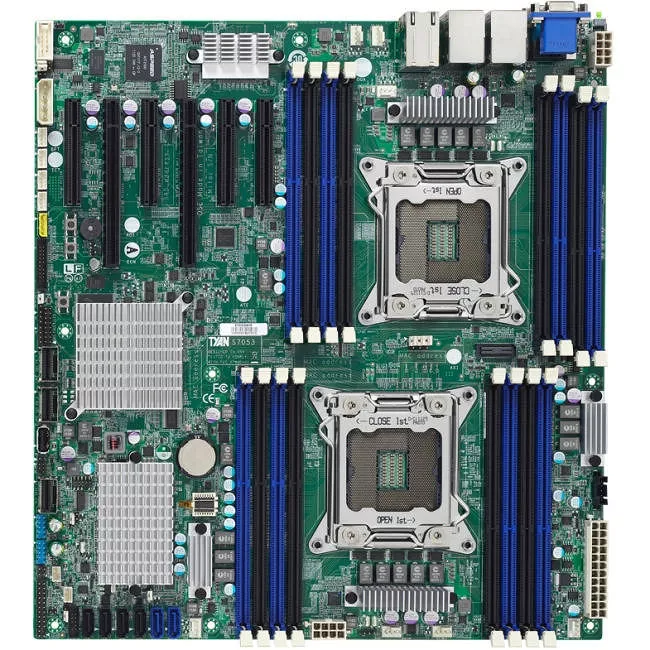

S7053 Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Total Processor Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
QuickPath Interconnect
8 GT/s
64-bit Processing
Yes
Memory
Number of Memory Slots
16
Memory Form Factor
Maximum Memory
512 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2300
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
6
PCI Express Standard
PCI Express 3.0
Total Number of PCI Express Slots
6
Number of PCI Express x8 Slots
4
Number of PCI Express x16 Slots
2
Interfaces/Ports
Total Number of USB Ports
4
Number of USB 2.0 Ports
4
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
2
Onboard Interfaces
Number of SATA Interfaces
6
Number of SAS Interfaces
0
Total Number of Onboard USB Ports
2
Number of Onboard USB 2.0 Ports
2
Onboard Serial Header
Yes
Power Description
Power Supply Supported
Physical Characteristics
Form Factor
SSI EEB
Width
13"
Depth
12"
Miscellaneous
Package Contents
- S7053 Motherboard
- 1 x User's manual
- 1 x Quick Ref. Guide
- 1 x TYAN installation CD
- 1 x I/O Shield
- 6 x SATA signal cables
Compatibility
Barebone / Chassis:
- KFT48
- KTN70A
Certifications & Standards
- IPMI 2.0
- ACPI 2.0
- FCC
- CE
Environmentally Friendly
Yes
Environmental Certification
Country of Origin
Taiwan
