TYN-S7050A2NRF-00
MPN: S7050A2NRF

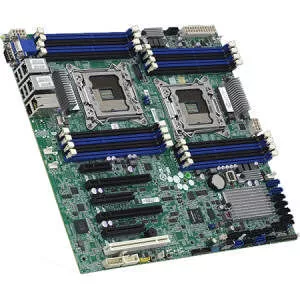

TYAN S7050A2NRF Server Motherboard - Intel C602 Chipset - Socket R LGA-2011 - SSI EEB

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S7050A2NRF
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Model
S7050A2NRF
Product Name
S7050A2NRF Server Motherboard
Packaged Quantity
1
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C602
Total Processor Supported
2
Processor Socket
Socket R LGA-2011
Processor Supported
Xeon
QuickPath Interconnect
8 GT/s
64-bit Processing
Yes
Memory
Number of Memory Slots
16
Memory Form Factor
  • DIMM
  • UDIMM
  • RDIMM
  • LRDIMM
    • Maximum Memory Supported
    512 GB
    Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1600/PC3-12800
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1600 MHz
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
  • Serial ATA/300
  • Serial ATA/600
    • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 5
  • 1+0
    • Video
    Onboard Video
    No
    Audio
    Sound Controller Model
    ALC262
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Total Number of Expansion Slots
    6
    Number of PCI Slots
    1
    PCI Express Standard
  • PCI Express 3.0
  • PCI Express 2.0
    • Total Number of PCI Express Slots
    5
    Number of PCI Express x4 Slots
    1
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    2
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Serial Port
    Yes
    Audio Line In
    Yes
    Audio Line Out
    Yes
    Microphone Port
    Yes
    Network (RJ-45)
    Yes
    Number of Network (RJ-45) Ports
    2
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    3
    Number of Onboard USB 2.0 Ports
    3
    Onboard Serial Header
    Yes
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Power Description
    Power Supply Supported
    ATX12V
    Physical Characteristics
    Form Factor
    SSI EEB
    Width
    13"
    Depth
    12"
    Miscellaneous
    Package Contents
    • S7050A2NRF Server Motherboard
    • 1 x User's Manual
    • 1 x Quick Ref. Guide
    • 1 x Installation CD
    • 1 x I/O Shield
    • 6 x SATA Signal Cables
    Certifications & Standards
    • FCC Class B
    • CE
    Environmentally Friendly
    Yes
    Environmental Compliance
  • China Restriction of Hazardous Substances (China RoHS)
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
    • Warranty
    Limited Warranty
    3 Year
