TYN-S7025WAGM2NR-00
MPN: S7025WAGM2NR

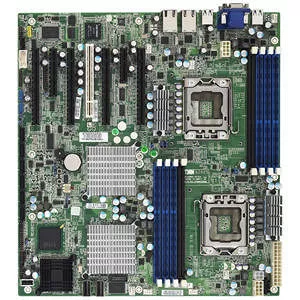

TYAN S7025WAGM2NR Server Motherboard - Intel 5520 Chipset - Socket B LGA-1366 - SSI EEB


Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S7025WAGM2NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Series
S7025
Product Model
S7025WAGM2NR
Product Name
S7025 Series S7025WAGM2NR Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5520
Total Processor Supported
2
Processor Socket
Socket B LGA-1366
Processor Supported
  • Xeon Dual-Core
  • Xeon Quad-core
  • QuickPath Interconnect
    6.40 GT/s
    64-bit Processing
    Yes
    Memory
    Number of Memory Slots
    8
    Maximum Memory Supported
    64 GB
    Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
  • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
  • I/O Controller
    Controller Type
  • Serial Attached SCSI (SAS)
  • Serial ATA/300
  • RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 1+0
  • 5
  • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2050
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC262
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    8
    Number of PCI Slots
    1
    Total Number of PCI Express Slots
    6
    Number of PCI Express x4 Slots
    1
    Number of PCI Express x8 Slots
    1
    Number of PCI Express x16 Slots
    4
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Serial Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Number of SAS Interfaces
    2
    Total Number of Onboard USB Ports
    1
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Physical Characteristics
    Form Factor
    SSI EEB
    Width
    12"
    Depth
    13"
    Miscellaneous
    Package Contents
    • S7025 Series S7025WAGM2NR Server Board
    • 1 x CCBL-0613, 3-POS Audio Bracket Cable
    • 1 x CCBL-035J, 2-port USB Bracket Cable
    • 2 x CCBL-067M, Mini-SAS Cable for S5397
    • 6 x SATA Signal Cables
    • 1 x I/O Shield
    • 1 x Installation CD
    • 1 x User Manual
    • 1 x Quick Ref. Guide
    Additional Information

    BIOS:

    • AMI BIOS
    • 4MB ROM Size
    • Plug and Play (PnP)
    • PCI2.3
    • WfM2.0
    • SMBIOS2.3
    • PXE Boot
    • ACPI 2.0 Power Management
    • Power on Mode After Power Recovery
    • User-configurable H/W Monitoring
    • Auto-configurable of Hard Disk Types
    • Multiple Boot Options
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
