MPN: S7016WGM3NR

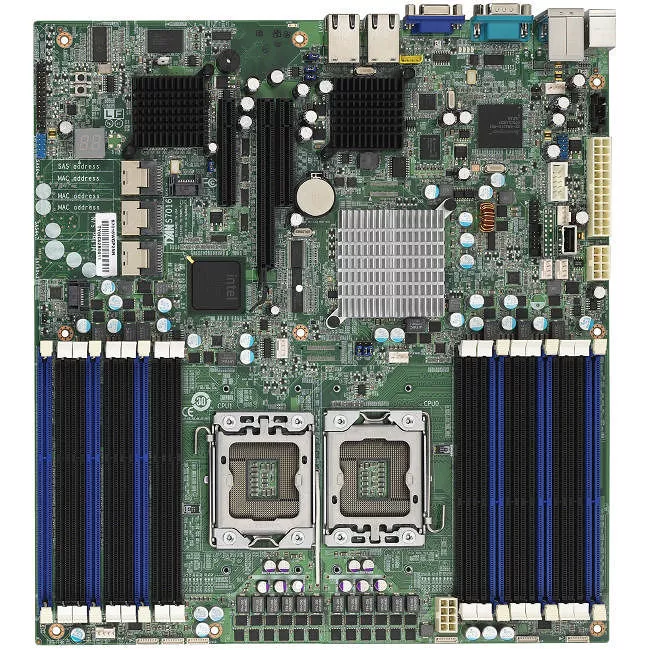

TYAN S7016WGM3NR Server Motherboard - Intel 5520 Chipset - Socket B LGA-1366 - Extended ATX
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S7016WGM3NR
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Name
S7016 Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5520
Total Processor Supported
2
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
QuickPath Interconnect
6.40 GT/s
64-bit Processing
Yes
Memory
Number of Memory Slots
18
Maximum Memory Supported
144 GB
Memory Standard
Memory Technology
DDR3 SDRAM
Memory Speed Supported
I/O Controller
Controller Type
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Number of Total Expansion Slots
4
Total Number of PCI Express Slots
3
Number of PCI Express x8 Slots
2
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 2.0 Ports
2
Serial Port
Yes
VGA
Yes
Network (RJ-45)
Yes
PS/2 Port
Yes
Number of PS/2 Ports
2
Onboard Interfaces
Number of SATA Interfaces
2
Number of SAS Interfaces
3
Total Number of Onboard USB Ports
1
Onboard LEDs Header
Yes
Physical Characteristics
Form Factor
Extended ATX
Width
12"
Depth
13"
Miscellaneous
Package Contents
- S7016 Server Board
- 1 x I/O Shield
- 2 x SATA signal cables
- 1 x Mini-SAS cable
- 1 x 2-port USB bracket cable
- 1 x User manual
- 1 x Quick Reference Guide
- 1 x Installation CD
Additional Information
BIOS:
- AMI
- 4MB ROM
- Plug and Play (PnP)
- PCI2.3
- WfM2.0
- MBIOS2.3
- PXE boot
- ACPI 2.0 power management
- Power on mode after power recovery
- User-configurable H/W monitoring
- Auto-configurable of hard disk types
- Multiple boot options
Environmentally Friendly
Yes
Warranty
Limited Warranty
3 Year
