TYN-S7010AGM2NRF-00
MPN: S7010AGM2NRF

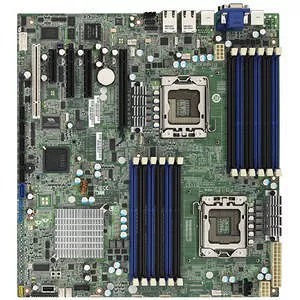

TYAN S7010AGM2NRF Server Motherboard - Intel 5520 Chipset - Socket B LGA-1366 - SSI EEB

Highlights
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S7010AGM2NRF
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Name
S7010 Server Motherboard
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
5520
Total Processor Supported
2
Processor Technology
Enhanced SpeedStep Technology
Processor Socket
Socket B LGA-1366
Processor Supported
Xeon
QuickPath Interconnect
6.40 GT/s
64-bit Processing
Yes
Memory
Number of Memory Slots
12
Maximum Memory Supported
96 GB
Memory Standard
  • DDR3-1333/PC3-10600
  • DDR3-1066/PC3-8500
  • DDR3-800/PC3-6400
    • Memory Technology
    DDR3 SDRAM
    Memory Speed Supported
  • 1333 MHz
  • 1066 MHz
  • 800 MHz
    • I/O Controller
    Controller Type
    Serial ATA/300
    RAID Supported
    Yes
    RAID Levels
  • 0
  • 1
  • 1+0
  • 5
    • Video
    Onboard Video
    On-board Video Chipset
    Graphics Controller Manufacturer
    ASPEED
    Graphics Controller Model
    AST2050
    Audio
    Sound Controller Manufacturer
    Realtek
    Sound Controller Model
    ALC262
    Network & Communication
    Gigabit Ethernet
    Yes
    I/O Expansions
    Number of Total Expansion Slots
    6
    Number of PCI Slots
    1
    Total Number of PCI Express Slots
    4
    Number of PCI Express x4 Slots
    1
    Number of PCI Express x8 Slots
    2
    Number of PCI Express x16 Slots
    1
    Interfaces/Ports
    Total Number of USB Ports
    4
    Number of USB 2.0 Ports
    4
    Serial Port
    Yes
    VGA
    Yes
    Network (RJ-45)
    Yes
    Onboard Interfaces
    Number of SATA Interfaces
    6
    Total Number of Onboard USB Ports
    2
    Total Number of Onboard FireWire/i.LINK Ports
    2
    Onboard LEDs Header
    Yes
    Onboard Audio Header
    Yes
    Physical Characteristics
    Form Factor
    SSI EEB
    Width
    12"
    Depth
    13"
    Miscellaneous
    Package Contents
    • S7010 Server Board
    • 1 x I/O Shield
    • 6 x SATA signal cables
    • 1 x 2-port USB bracket cable
    • 1 x 2-port IEEE 1394a bracket cable
    • 1 x User manual
    • 1 x Quick Reference Guide
    • 1 x Installation CD
    Additional Information

    BIOS:

    • AMI
    • 4MB ROM
    • Plug and Play (PnP)
    • PCI2.3
    • WfM2.0
    • SMBIOS2.3
    • PXE boot
    • ACPI 2.0
    • power management
    • Power on mode after power recovery
    • User-configurable H/W monitoring
    • Auto-configurable of hard disk types
    • Multiple boot options
    Environmentally Friendly
    Yes
    Warranty
    Limited Warranty
    3 Year
