MPN: S5630GMRE-L2

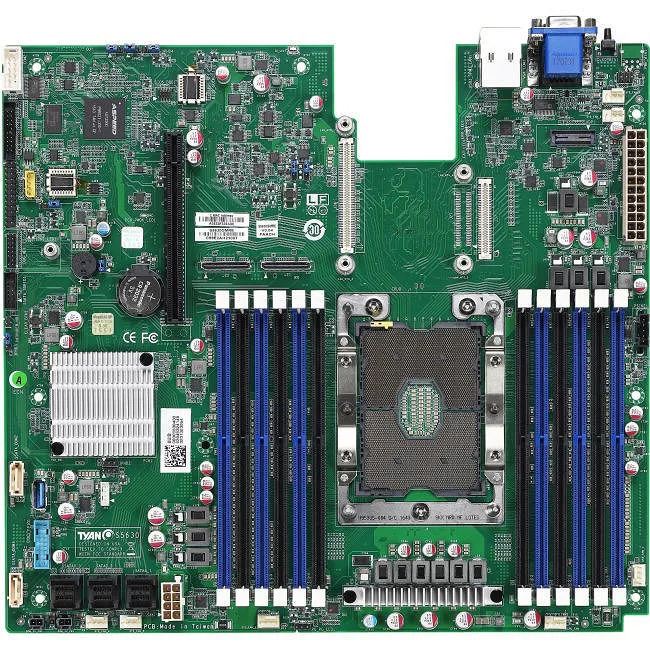

TYAN S5630GMRE-L2 Tempest CX S5630 Server Motherboard - C622 Chipset - Socket LGA-3647
Highlights
Specifications
General Information
Manufacturer
Tyan Computer Corp
Manufacturer Part Number
S5630GMRE-L2
Manufacturer Website Address
http://www.tyan.com
Brand Name
Tyan
Product Line
Tempest CX
Product Model
S5630
Product Name
Tempest CX S5630 Single Socket Xeon Scalable Processor Server Motherboard
Packaged Quantity
1
Product Type
Server Motherboard
Processor & Chipset
Chipset Manufacturer
Intel
Chipset Model
C622
Total Processor Supported
1
Processor Socket
Socket P LGA-3647
Processor Supported
Memory
Number of Memory Slots
12
Memory Form Factor
Maximum Memory Supported
1.50 TB
Memory Technology
DDR4 SDRAM
Memory Speed Supported
2666 MHz
I/O Controller
Controller Type
Serial ATA/600
Intel VROC
Yes
Intel RSTe
Yes
RAID Supported
Yes
RAID Levels
Video
Onboard Video
On-board Video Chipset
Graphics Controller Model
AST2500
Network & Communication
Gigabit Ethernet
Yes
I/O Expansions
Total Number of Expansion Slots
2
Total Number of PCI Express Slots
1
Number of PCI Express x16 Slots
1
Interfaces/Ports
Total Number of USB Ports
2
Number of USB 3.0 Ports
2
VGA
Yes
Onboard Interfaces
Number of SATA Interfaces
2
Number of Mini-SAS Interfaces
3
Total Number of Onboard USB Ports
3
Number of Onboard USB 3.0 Ports
3
Physical Characteristics
Form Factor
SSI CEB
Width
12"
Depth
10.9"
Miscellaneous
Package Contents
- Tempest CX S5630 Single Socket Xeon Scalable Processor Server Motherboard
- 1 x Quick Installation Guide
- 1 x TYAN Device Driver CD
Country of Origin
Taiwan
Environmentally Friendly
Yes
Environmental Compliance
Warranty
Limited Warranty
3 Year
